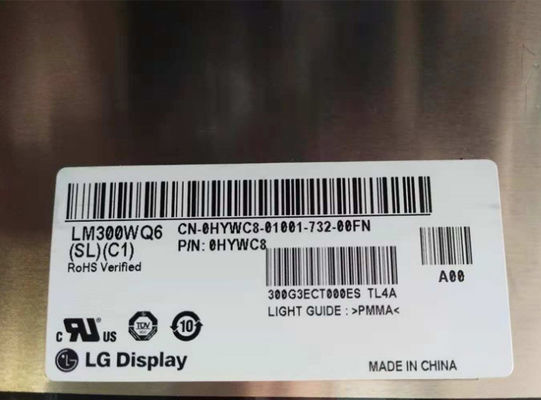

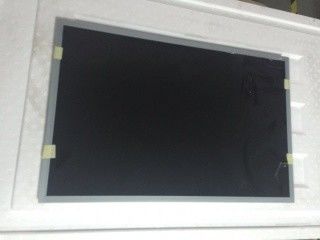

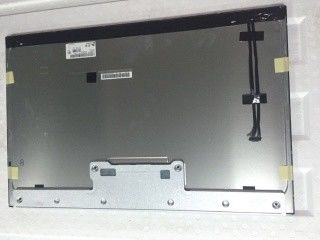

Product Details:
|
| MODEL NUMBER: | LM300WQ6-SLC1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 2560(RGB)×1600 (WQXGA) 101PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 350CD/M2 |
| SIZE: | 30.0 Inch | BRAND: | LG DISPLAY |
| Highlight: | LM300WQ6-SLC1 Industrial Lcd Panel,2560×1600 LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM300WQ6-SLC1 | a-Si TFT-LCD , LCM | LM300WQ6 (SL)(C1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AH-IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 110% | 100% | 100% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 95% | 82% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 30.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1600 [WQXGA] | RGB Vertical Stripe | 0.2505×0.2505 [101PPI] | 0.0835×0.2505 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 641.28(H) × 400.8(V) | 646.3(H) × 405.8(V) | 677.3(H) × 436.8(V) | 11.0/18.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 4.15/4.36Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| GB-r LED | Edge light type | - | - | 30K(Min.) | - | |
| GB-r LED Electrical : | Voltage Supply | Current Supply | Power | |||
| 59.6/65.1V (Typ.)(Green/Blue) | 75/75mA (Typ.)(Green/Blue) | 37.4/40.2W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | H401K-D12N-12B | 2.0 mm | 12 pins | 1 pcs | BLE-12PINS-CCAACCCCAACC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 700/840mA (Typ./Max.) | 8.4/10.08W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (4 ch, 10-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS050-C51B-C39-A | 0.5 mm | 51 pins | 1 pcs | ||
| UJU | IS050-C41B-C39-A | 0.5 mm | 41 pins | 1 pcs | ||

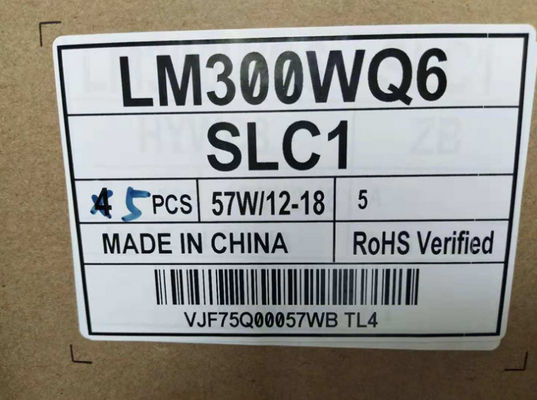

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | - | 830×348×500 mm (L×W×H) |
