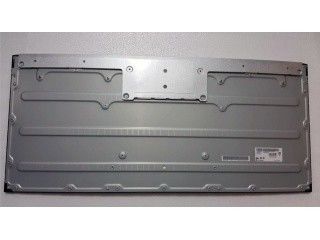

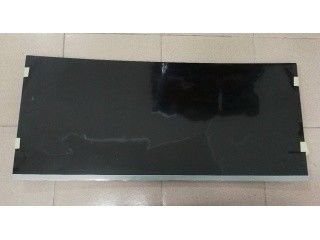

Product Details:
|
| MODEL NUMBER: | LM340UW2-SSA1 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Min.)(CR≥10) | RESOLUTION: | 3440(RGB)×1440, 109PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 300CD/M2 |
| SIZE: | 34 Inch | BRAND: | LG DISPLAY |
| Highlight: | LM340UW2-SSA1 TFT LCD Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM340UW2-SSA1 | a-Si TFT-LCD , LCM | LM340UW2 (SS)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 34 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.0775×0.2535 mm | 0.2325×0.2325 mm [109PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 799.8×334.8 mm | - | 819.3×363 mm | 11.5/19.1 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Curved Display, R3800 | 21:9 (W : H) | Landscape type | 3-side borderless | |
| Fixation : | Rear mounting poles (17-M3) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 5.30Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 5 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.8/1.0A (Typ./Max.) | 10.0V (Typ.) | 8.0/10.0W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (4 ch, 10-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS050-C51B-C39-A | 1 pcs | 0.5 mm | 51 pins | ||
| UJU | IS050-C41B-C39-A | 3 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 12S4P | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 120/125mA (Typ./Max.) | 36.6±2.4V | 35.1/37.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHJH(HF) | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
