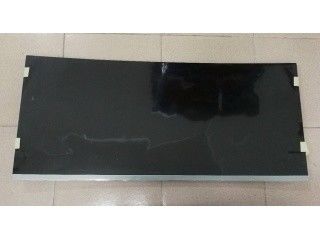

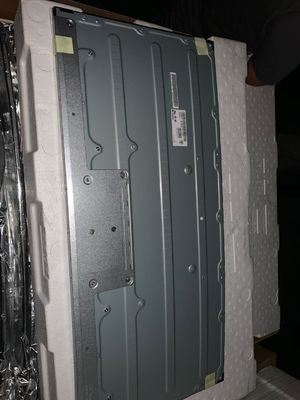

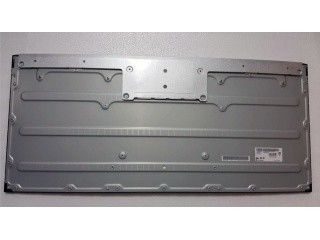

LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY

LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY
LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM340UW1-SSA2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 800PCS
Contact Now

LM340UW1-SSA2 LG Display 34.0" 3440(RGB)×1440 320 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM340UW1-SSA2 BRAND: LG DISPLAY
SIZE: 34 Inch BRIGHTNESS: 320CD/M2
Lamp Type: WLED RESOLUTION: 3440(RGB)×1440 109PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LM340UW1-SSA2 TFT LCD Panel

,

WLED Lamp LCD Display Panels

,

TFT LCD Display SVGA 119PPI

LG Display LM340UW1-SSA2 Application Details

Basic Detail :
Manufacturer

LM340UW1-SSA2Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM340UW1 (SS)(A2)
Panel Size
34 inch
Designed For






  •
  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM340UW1-SSA2 Optical Details

Basic Detail :
Luminance
320 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AH-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
75%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
78% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM340UW1-SSA2 Mechanical Details

Pixel Features :
Number of Pixel
3440(RGB)×1440
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0775×0.2535 mm
Pixel Pitch(W×H)
0.2325×0.2325 mm [109PPI]
Physical Size :
Active Viewing
799.8(W)×334.8(H) mm
Overall Dim.
820.8(W)×361(H) mm
Bezel Opening
-
Overall Depth
11.8/19.8 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
21:9
Shape Style
3-side borderless
Fixation :
Rear mounting holes
Other Detail :
Mass
3.71/3.90Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM340UW1-SSA2 Interface Detail

Signal Electrical :
Input Current
0.8/1.0A (Typ./Max.)
Input Voltage
10.0V (Typ.)
Consumption
8.0/10.0W (Typ./Max.)
Signal Interface
eDP (4 Lanes), HBR2 (5.4G/lane)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs
EDP-30P4L-050A



LG Display LM340UW1-SSA2 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
36.6±2.4V
Input Current
120/125mA (Typ./Max.)
Consumption
35.1/37.5W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
2 pcs
BLE-9PINS-CCAACC
Backlight Driver :
No

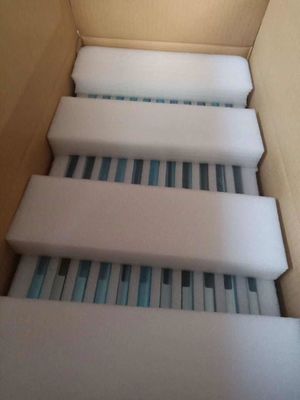

LG Display LM340UW1-SSA2 Packing Details

Package Box : Amount Size (L×W×H) Weight
48 pcs / box - 1140×990×1037 mm
