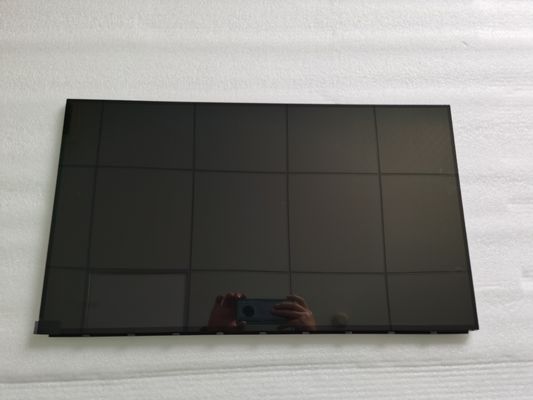

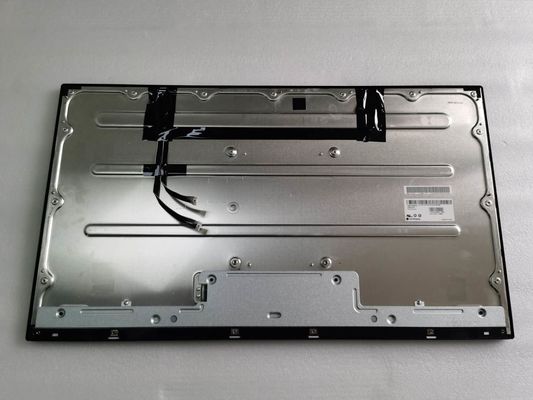

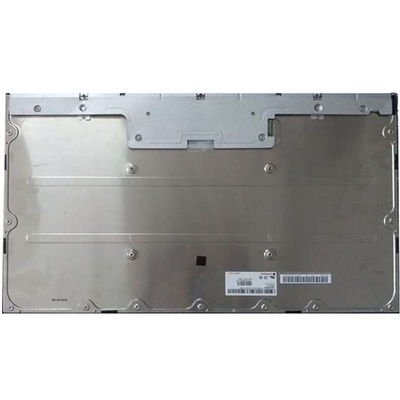

Product Details:
|
| MODEL NUMBER: | LM270WR5-SSB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 163PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM270WR5-SSB1 TFT LCD Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM270WR5-SSB1 | a-Si TFT-LCD , LCM | LM270WR5 (SS)(B1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 27.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.0518×0.1554 mm | 0.1554×0.1554 mm [163PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 596.74×335.66 mm | - | 608.8×349 mm | 9.3/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | 4-side borderless | |
| Fixation : | Rear mounting holes (9-M3) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.25/2.37Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 78% | 100% | 79% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 81% | 58% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 660/825mA (Typ./Max.) | 10.0V (Typ.) | 6.6/8.25W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (4 Lanes) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-050A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings × 2CN | 4 strings × 2CN | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 100/105mA (Typ./Max.) | 23.1±1.6V | 18.5/19.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 10035WR-H06D | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
