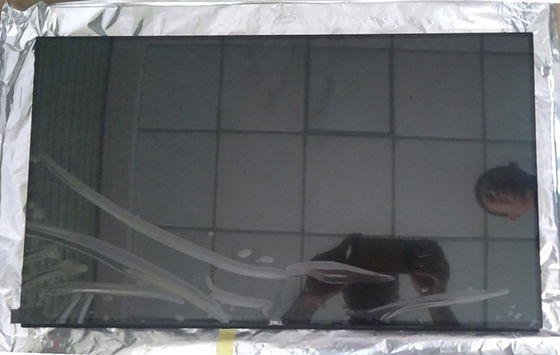

Product Details:
|
| MODEL NUMBER: | LM270WR5-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 163PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM270WR5-SSA1 TFT LCD Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Detail : | Manufacturer | Model Name | LM270WR5-SSA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WR5 (SS)(A1) | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 78% | sRGB | 100% coverage |
| Adobe RGB | 79% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0518×0.1554 mm | Pixel Pitch(W×H) | 0.1554×0.1554 mm [163PPI] | |
| Physical Size : | Active Viewing | 596.74(W)×335.66(H) mm | Overall Dim. | 608.8(W)×349(H) mm |
| Bezel Opening | - | Overall Depth | 9.3/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 4-side borderless | |

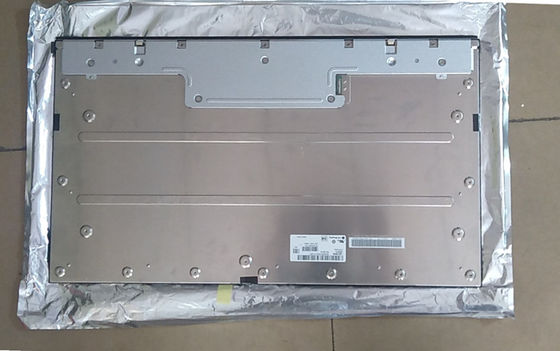

| Fixation : | Rear mounting holes (11-M3) | |||
| Other Detail : | Mass | 2.27/2.38Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 660/825mA (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.6/8.25W (Typ./Max.) | Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-050A | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 16S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 130/135mA (Typ./Max.) | Input Voltage | 48.5±3.2V | ||
| Consumption | 25.2/26.9W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||

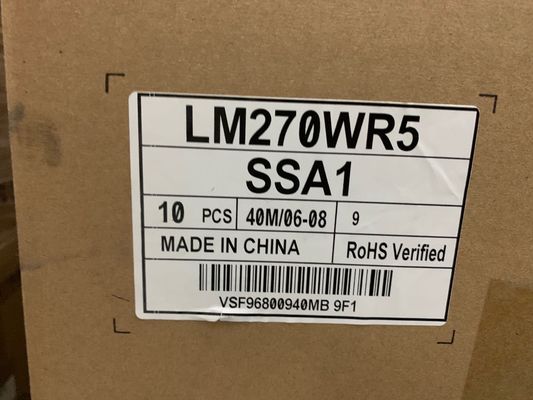

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 710×365×448 mm | - |
