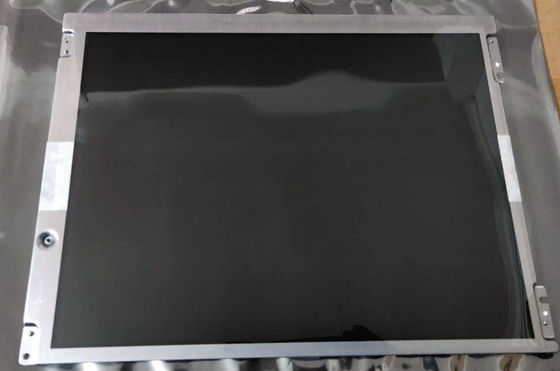

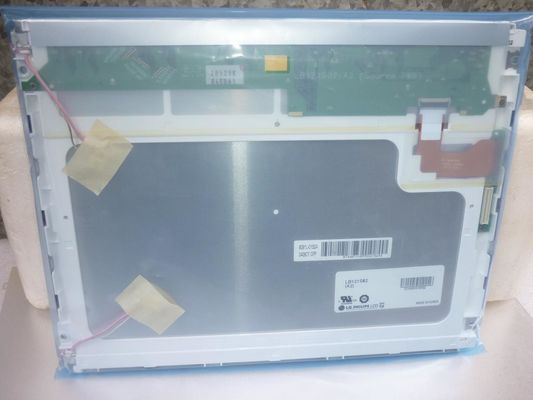

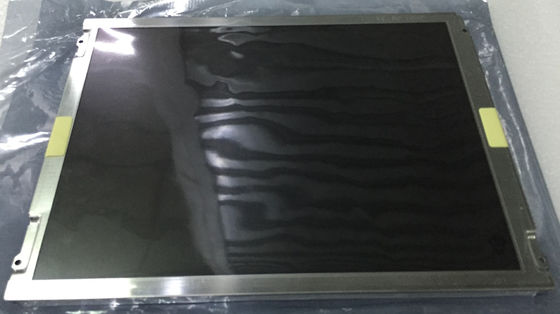

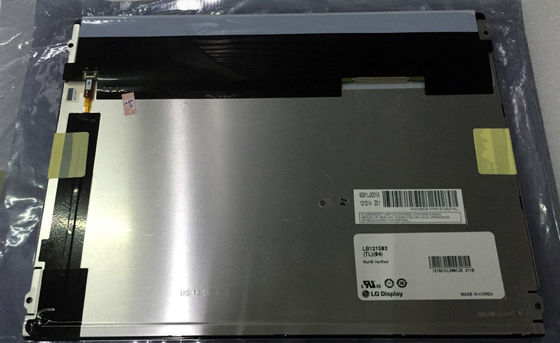

Product Details:
|
| MODEL NUMBER: | LB121S1-A2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×600 (SVGA) 82PPI |
| VIEWING ANGLEG: | 60/60/40/55 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LB121S1-A2 Industrial Lcd Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB121S1-A2 | a-Si TFT-LCD , LCM | LB121S1 (A2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 60/60/40/55 (Typ.)(CR≥10) | 20/35 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 5198K | 262K (6-bit) | X:0.340; Y:0.346 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 43% | 60% | 45% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 45% | 32% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Panel Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | 249.0(H) × 187.5(V) | 280(H) × 218(V) | 12.0±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 795g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 2 pcs | Straight | 50K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 540/580/665V (Min./Typ./Max.) | 3.0/6.0/8.0mA (Min./Typ./Max.) | 7.0/ 8.6W (Typ./Max.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 30/55/60KHz (Min./Typ./Max.) | 875/1300V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 310mA (Typ.)(ICC) | 1W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9B-41P-1V | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010A | |
