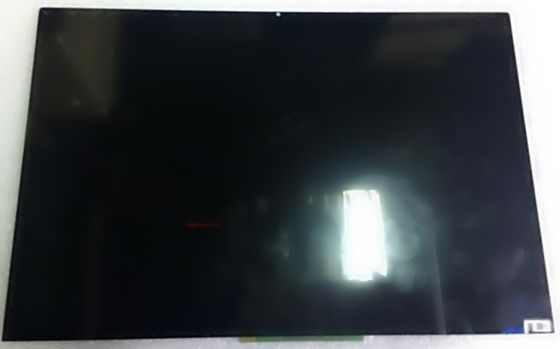

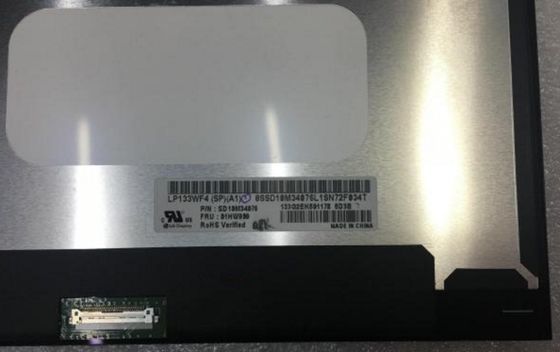

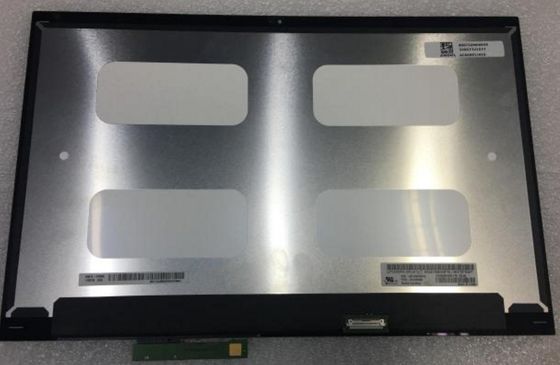

Product Details:
|
| MODEL NUMBER: | LP133WF4-SPA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 13.3INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LP133WF4-SPA1 Industrial Lcd Panel,WLED Lamp LCD Display Panels,TFT LCD Display SVGA 119PPI |
||
| Basic Info : | Panel Brand | Panel Model | LP133WF4-SPA1 | |
|---|---|---|---|---|
| Diagonal Size | 13.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LP133WF4 (SP)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.051×0.153 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.153×0.153 mm (H×V) [166PPI] | |
| Mechanical Size : | Display Area | 293.76×165.24 mm (H×V) | Bezel Area | 296.56×168.14 mm (H×V) |
| Outline Dim. | 300.26×188.75 mm (H×V) | Outline Depth | 2.4/2.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 210g (Max.) | Surface | Glare (Haze 0%) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 90% coverage |
| Adobe RGB | 70% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.5/12.0/21.0V (Min./Typ./Max.) | Current Input | 267/272mA (Typ./Max.0 | ||
| Consumption | 3.20/3.26W (Typ./Max.) | |||||
| Signal Systerm : | eDP (2 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 258/297mA (Typ./Max.) | ||
| Consumption | 0.85/0.9W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | HD2S030HA2 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020Q | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
