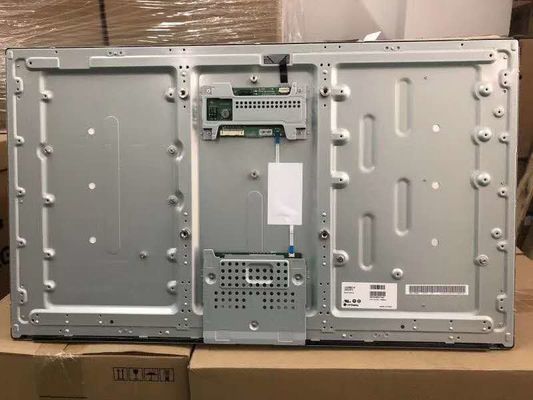

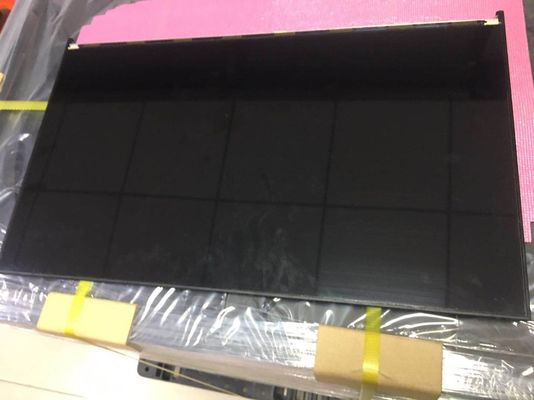

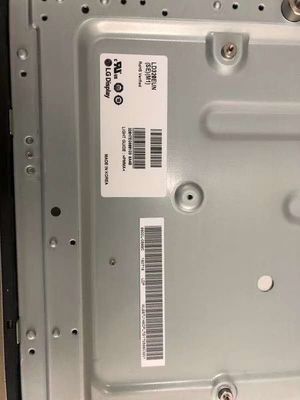

Product Details:
|
| MODEL NUMBER: | LD320EUN-SLM1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 32 Inch | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 69PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LD320EUN-SLM1 TFT LCD Panel,Symmetry TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LD320EUN-SLM1 | a-Si TFT-LCD , LCM | LD320EUN (SL)(M1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | 22 (G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | S-IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9972K | 16.7M (8-bit) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 66% | 90% | 68% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.30 (Typ.)(5 points) | ||
| Panel Size : | 32.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.36375×0.36375 [69PPI] | 0.12125×0.36375 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 698.4(H) × 392.85(V) | 705.6(H) × 400.1(V) | 727.4(H) × 429(V) | 28.7 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape / Portrait | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 5.40/5.70Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 20022WR-H14B2 | 2.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 24.0±1.2V | 1.33/1.45A (Typ./Max.) | 31.9/34.8W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 492/640mA (Typ./Max.) | 5.9/7.7W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-R51S-HF | 0.5 mm | 51 pins | 1 pcs | LVDS-51P2C8B-048A | |

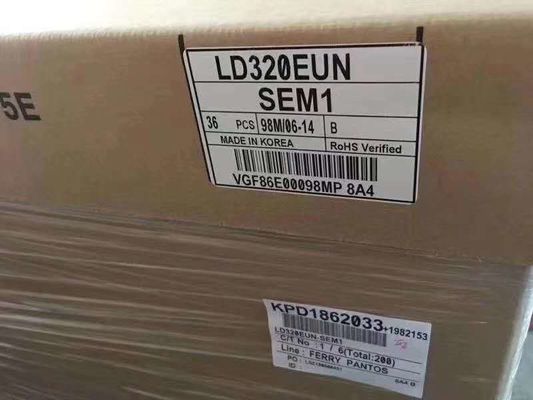

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 6 pcs / box | - | 365×847×530 mm (L×W×H) |
