LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY
LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

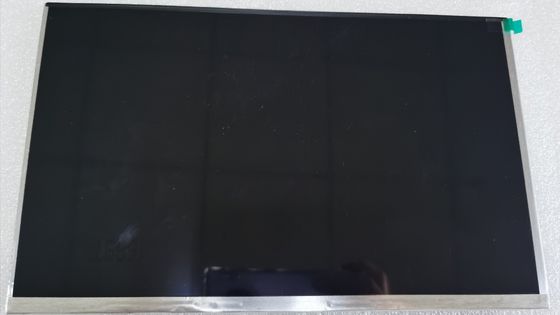

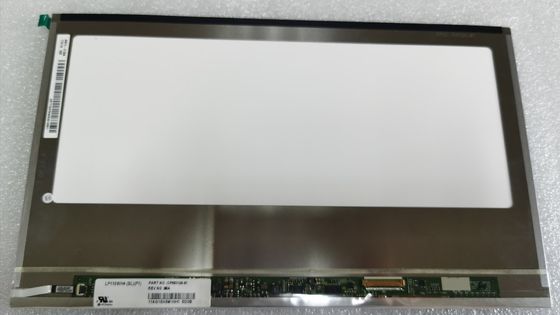

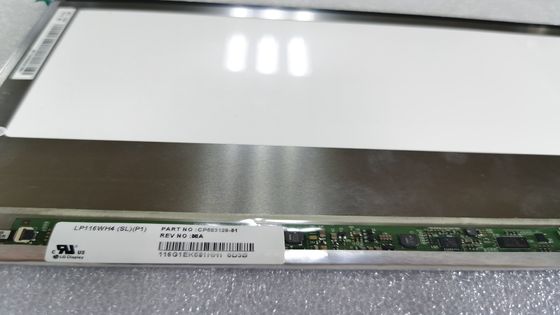

Large Image :  LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP116WH4-SLP1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP116WH4-SLP1 BRAND: LG DISPLAY
SIZE: 11.6 Inch BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 [WXGA] 135PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LP116WH4-SLP1 TFT LCD Panel

,

Symmetry TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LP116WH4-SLP1 Application Details

Basic Detail :
Manufacturer

LP116WH4-SLP1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name

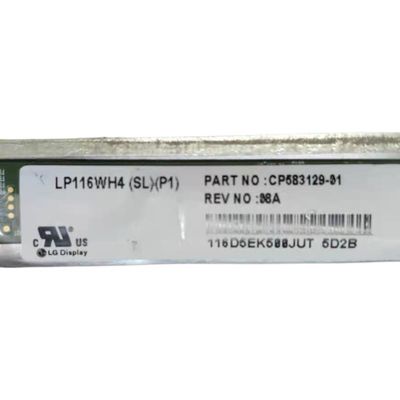

LP116WH4 (SL)(P1), LGD038C
Panel Size
11.6 inch
Designed For





  •
  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LP116WH4-SLP1 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP116WH4-SLP1 Mechanical Details

Pixel Features :
Number of Pixel
1366(RGB)×768, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0625×0.1875 mm
Pixel Pitch(W×H)
0.1875×0.1875 mm [135PPI]
Physical Size :
Active Viewing
256.125(W)×144(H) mm
Overall Dim.
267(W)×157.8(H) mm
Bezel Opening
-
Overall Depth
2.5/4.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Fixation :
Without
Other Detail :
Mass
170g (Max.)
Surface
Antiglare



LG Display LP116WH4-SLP1 Interface Detail

Signal Electrical :
Input Current
165/190mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.6/0.7W (Typ./Max.)
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20474-040E-12
0.4 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



LG Display LP116WH4-SLP1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
7.0/12.0/21.0V (Min./Typ./Max.)
Input Current
210/225mA (Typ./Max.)
Consumption
2.5/2.7W (Typ./Max.)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY 0LP116WH4-SLP1 LG Display 11.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY 1
