Product Details:
|
| MODEL NUMBER: | LM290WW2-SSC1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 29.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1080 (CSHD) 96PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LM290WW2-SSC1 TFT LCD Panel,Symmetry TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM290WW2-SSC1 | a-Si TFT-LCD , LCM | LM290WW2 (SS)(C1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 29.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1080, CSHD | RGB Vertical Stripe | 0.0876×0.2628 mm | 0.2628×0.2628 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 672.768×283.824 mm | - | 693.6×308.9 mm | 11/17 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 21:9 (W : H) | Landscape type | 3-side borderless | |

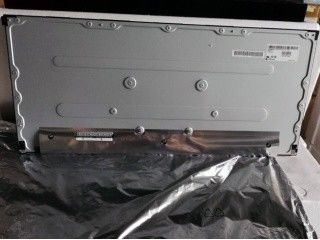

| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.11/3.265Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 99% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.53/0.66A (Typ./Max.) | 10.0V (Typ.) | 5.3/6.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (4 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT05P-51S-H38-E1500 | 1 pcs | 0.5 mm | 51 pins | ||
| LS Mtron | GT05P-41S-H38-E1500 | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | - | 4 strings | 18S4P | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 60/65mA (Typ./Max.) | 47.9±3.6V | 11.5/12.4W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 14 pcs / box | - | 814×542×400 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
