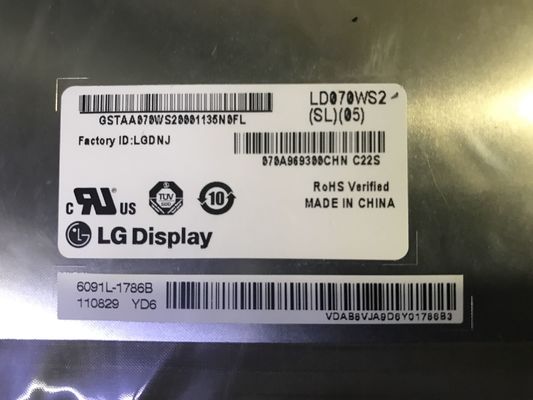

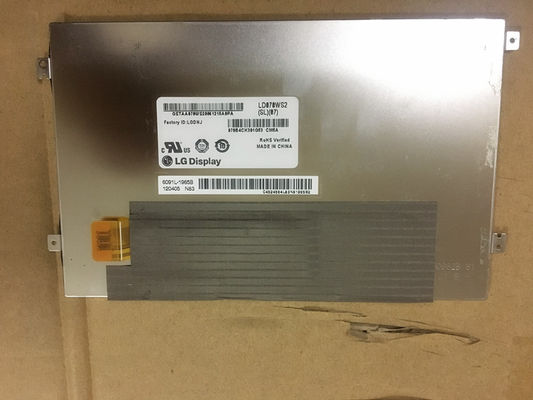

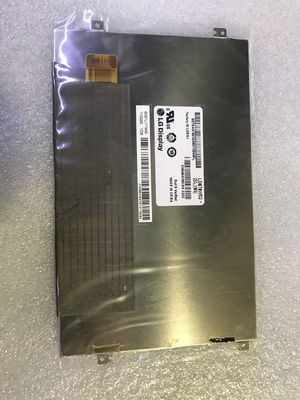

LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY
LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LD070WS2-SL05
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LD070WS2-SL05 BRAND: LG DISPLAY
SIZE: 7.0INCH BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×600, WSVGA, 169PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
Highlight:

LVDS TFT LCD Panel

,

LD070WS2-SL05 TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LD070WS2-SL05 Application Details

Basic Detail :
Manufacturer

LD070WS2-SL05LD070WS2-SL05 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY 0 2 CompatibleModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LD070WS2 (SL)(05)
Panel Size
7.0 inch
Designed For





  •
  •
Maximum Ratings :
OP Temperature
-10 ~ 60 °C
ST Temperature
-20 ~ 70 °C



LG Display LD070WS2-SL05 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
50 (Max.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.340
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6551K
White Variation
1.25/1.43 (Typ./max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LD070WS2-SL05 Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×600, WSVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.050×0.150 mm
Pixel Pitch(W×H)
0.150×0.150 mm [169PPI]
Physical Size :
Active Viewing
153.6(W)×90(H) mm
Overall Dim.
162.8(W)×102.9(H) mm
Bezel Opening
-
Overall Depth
2.47/4.17 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
17:10
Shape Style

Fixation :
Face mounting holes (4-Φ1.8) on left, right slugs
Other Detail :
Mass
94.0/98.0g (Typ./Max.)
Surface
Hard coating (3H)



LG Display LD070WS2-SL05 Interface Detail

Signal Electrical :
Input Current
250/288mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.83/0.95W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit) + SPI
Interface Features :
Position
-
Type

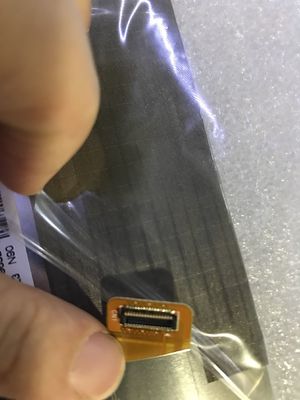

Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
AA01B-P030VA1
0.5 mm
30 pins
1 pcs



LG Display LD070WS2-SL05 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
5S4P
Position
Edge light type
Exchange
-
Lamp Shape
Array
Lamp Life
-
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
