LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY

LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY
LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY

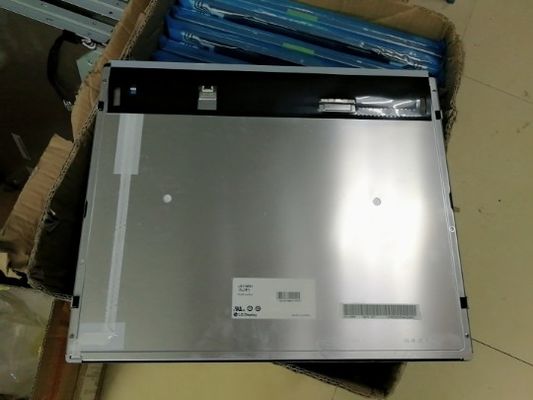

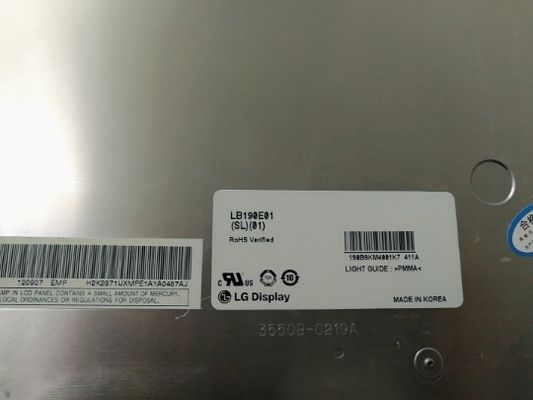

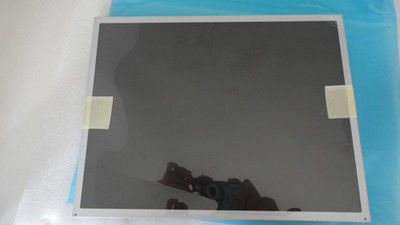

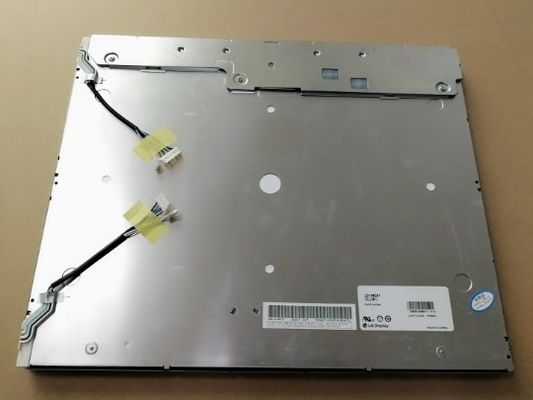

Large Image :  LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LB190E02-SL02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LB190E02-SL02 LG Display 19.0" 1280(RGB)×1024 330 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LB190E02-SL02 BRAND: LG DISPLAY
SIZE: 19.0INCH BRIGHTNESS: 330CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×1024 [SXGA] 86PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
Highlight:

LB190E02-SL02 TFT LCD Panel

,

Symmetry TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LB190E02-SL02 Application Details

Basic Detail :
Manufacturer

LB190E02-SL02Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LB190E02 (SL)(02)
Panel Size
19.0 inch
Designed For





  •
  •
Maximum Ratings :
OP Temperature
-10 ~ 70 °C
ST Temperature
-20 ~ 80 °C



LG Display LB190E02-SL02 Optical Details

Basic Detail :
Luminance
330 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
7/11 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.314; Wy:0.338
Support Color
16.7M (8-bit)
Color Temperature
6366K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LB190E02-SL02 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×1024, SXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.098×0.294 mm
Pixel Pitch(W×H)
0.294×0.294 mm [86PPI]
Physical Size :
Active Viewing
376.32(W)×301.056(H) mm
Overall Dim.
396(W)×324(H) mm
Bezel Opening
380.3(W)×305.0(H) mm
Overall Depth
12.8±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.25/1.30Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LB190E02-SL02 Interface Detail

Signal Electrical :
Input Current
0.80/1.04A (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
4.0/5.2W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
LS Mtron
GT101-30S-H23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A



LG Display LB190E02-SL02 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
50K(Min.) (Hours)
Lamp Electrical :
Input Voltage
32.0/34.0V (Typ./Max.)
Input Current
90/95mA (Typ./Max.)
Consumption
11.52/12.92W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
05010HR-06C(G)
0.5 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



LG Display LB190E02-SL02 Packing Details

Package Box : Amount Size (L×W×H) Weight
12 pcs / box - 408×355×474 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
