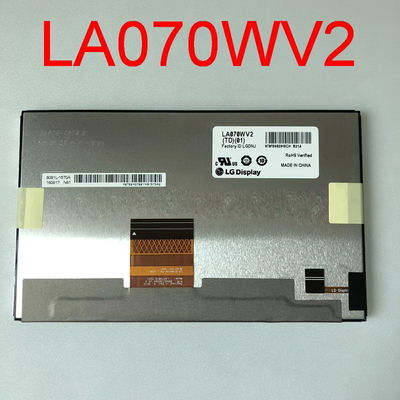

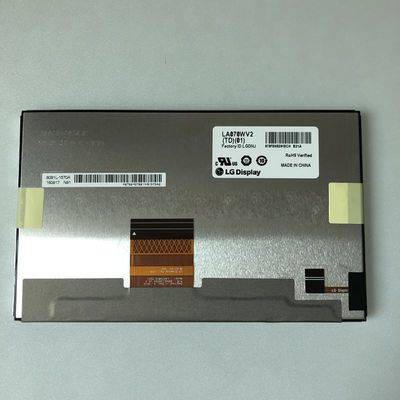

LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY

LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY
LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LA070WV2-TD01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LA070WV2-TD01 LG Display 7.0" 800(RGB)×480 550 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LA070WV2-TD01 BRAND: LG DISPLAY
SIZE: 7.0INCH BRIGHTNESS: 550CD/M2
Lamp Type: WLED RESOLUTION: 800(RGB)×480 [WVGA] 133PPI
VIEWING ANGLEG: 70/70/50/60 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
Highlight:

LA070WV2-TD01 TFT LCD Panel

,

Symmetry TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LA070WV2-TD01 Application Details

Basic Info :
Panel Brand

LA070WV2-TD01Panel Model
Diagonal Size
7.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LA070WV2 (TD)(01)
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C



LG Display LA070WV2-TD01 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0635×0.1905 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :
Display Area
152.4×91.44 mm (H×V)
Bezel Area
154.45×93.24 mm (H×V)
Outline Dim.
169×103.45 mm (H×V)
Outline Depth
7.5 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Holes & Brackets :
Without
Other Features :
Weight
165/175g (Typ./Max.)
Surface
Antiglare



LG Display LA070WV2-TD01 Optical Details

Basic Information :
Brightness
550 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
6/9 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Color Numbers
262K (6-bit)
Color Temperature
7351K
Uniformity
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
64%
sRGB
82% coverage
Adobe RGB
64% coverage
DCI-P3
66% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LA070WV2-TD01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
9S2P
Life Time
-
Replacement
-
Lamp Shape
2 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
27.0±2.7V
Current Input
50/55/60mA (Min./Typ./Max.)
Consumption
2.43/2.97/3.56W (Min./Typ./Max.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


1.0 mm
8 pins
1 pcs




LG Display LA070WV2-TD01 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL)
Current Input
-
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
60 pins
1 pcs



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
