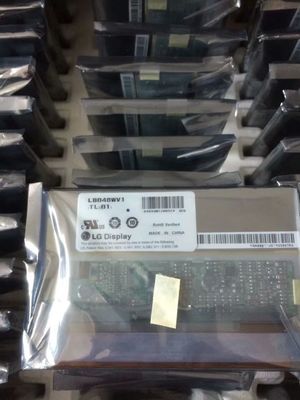

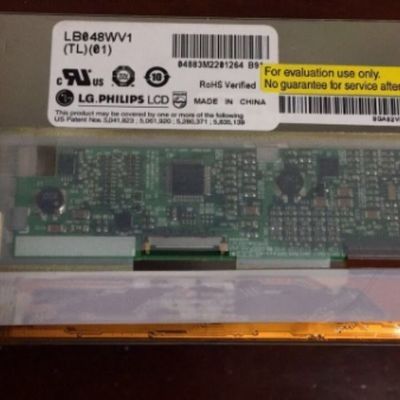

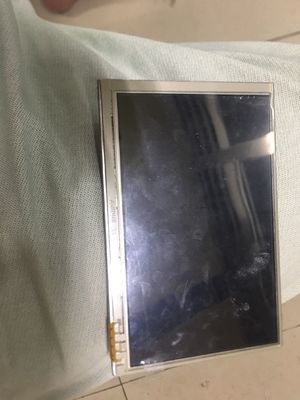

Product Details:
|
| MODEL NUMBER: | LB048WV1-TL01 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 4.8 Inch | BRIGHTNESS: | 280CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 (WVGA) 195PPI |
| VIEWING ANGLEG: | 65/65/50/50 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LVDS TFT LCD Panel,LB048WV1-TL01 TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB048WV1-TL01 | a-Si TFT-LCD , LCM | LB048WV1 (TL)(01) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 4.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.04325×0.12975 mm | 0.12975×0.12975 mm [195PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 103.8×62.28 mm | 106.8×65.28 mm | 114.65×74.7 mm | 4.05/5.88 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch, F/G | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 77.0±7.0g | Glare (Haze 0%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 280 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/50/50 (Typ.)(CR≥10) | - | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 67% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 120/140mA (Typ./Max.) | 3.3V (Typ.) | 0.4/0.46W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-JH30S-HF10 | 1 pcs | 0.4 mm | 30 pins | LVDS-30P1C6B-080A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2 strings | 6S2P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20/25mA (Typ.) | 19.25V (Typ.) | 770/840 mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 3.3V (Typ.) | 1.03W (Typ.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 63 pcs / box | - | 475×348×175 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
