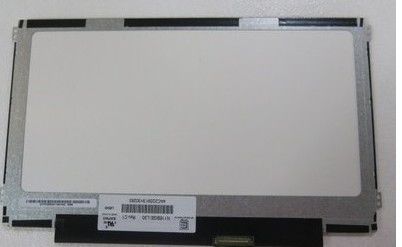

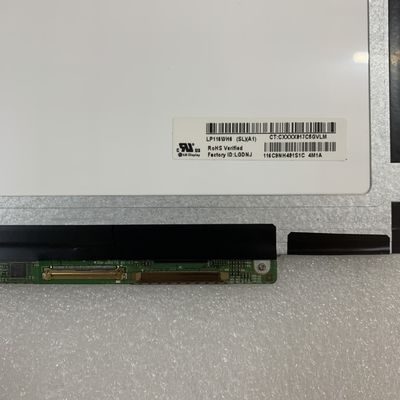

Product Details:
|
| MODEL NUMBER: | LP116WH6-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 11.6 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 135PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LVDS TFT LCD Panel,LP116WH6-SLA1 TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Detail : | Manufacturer | Model Name | LP116WH6-SLA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP116WH6 (SL)(A1), LGD0000 | |
| Panel Size | 11.6 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 79% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0625×0.1875 mm | Pixel Pitch(W×H) | 0.1875×0.1875 mm [135PPI] | |
| Physical Size : | Active Viewing | 256.125(W)×144(H) mm | Overall Dim. | 280(W)×168(H) mm |
| Bezel Opening | 260.15(W)×147.5(H) mm | Overall Depth | 3.1/3.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Face mounting holes (8 pcs) on left, right slugs | |||
| Other Detail : | Mass | 200g (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 227/261mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.75/0.86W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS050-L40B-C10 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060B | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 259/283mA (Typ./Max.) | Input Voltage | 6.0/12.0/20.0V (Min./Typ./Max.) | ||
| Consumption | 3.1/3.4W (Typ./Max.) | |||||
