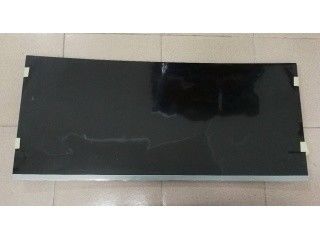

Product Details:
|

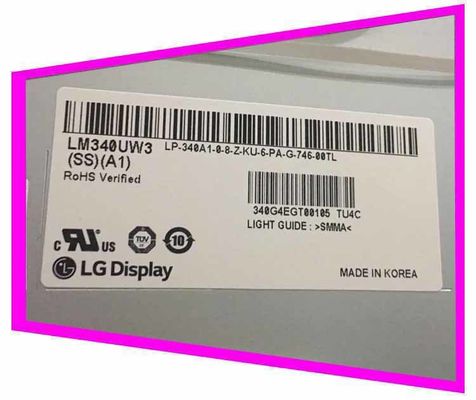

| MODEL NUMBER: | LM340UW3-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 34 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3440(RGB)×1440, 109PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LM340UW3-SSA1 TFT LCD Panel,Symmetry TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM340UW3-SSA1 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 34 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.0775×0.2535 mm | 0.2325×0.2325 mm [109PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 799.8×334.8 mm | - | 809.55×351.7 mm | 9.9/17.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Curved Display, R1900 | 21:9 (W : H) | Landscape type | 4-side borderless | |

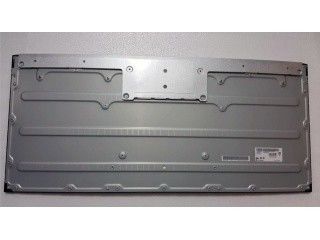

| Fixation : | Rear mounting holes (23-M3) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 4.35/4.57Kgs (Typ./Max.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 100% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 1.31±0.33A | 10.0V (Typ.) | 13.1±9.8W | ||||

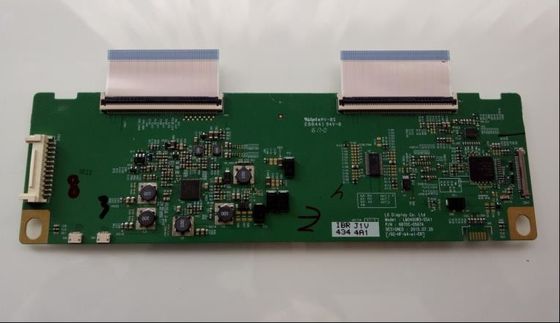

| Interface Features : | Position | Type | Interface | |||
| - | Connector | eDP (4 Lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-030A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 4 strings | 12S4P | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 110/115mA (Typ./Max.) | 36.2±2.4V | 31.9/34.0W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 20037WR-H12 | 1 pcs | 2.0 mm | 12 pins | BLL-12PINS-CCAACCCCAACC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 11 pcs / box | - | 934×542×450 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
