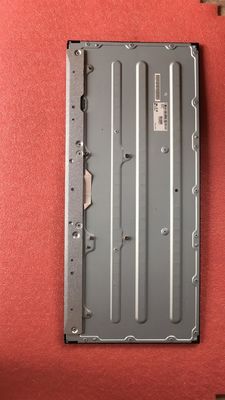

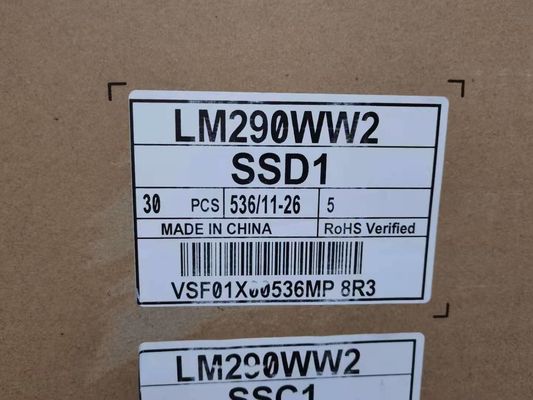

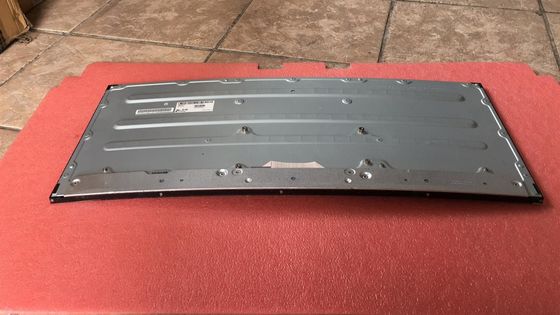

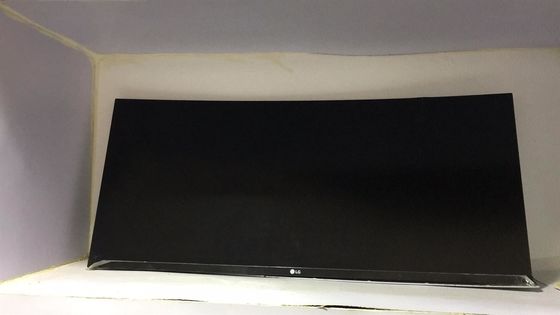

LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM290WW2-SSD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM290WW2-SSD1 LG Display 29.0" 2560(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM290WW2-SSD1 BRAND: LG DISPLAY
SIZE: 29.0INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1080 [CSHD] 96PPI
VIEWING ANGLEG: 89/89/89/89 (Min.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

LVDS TFT LCD Panel

,

LM290WW2-SSD1 TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LM290WW2-SSD1 Application Details

Basic Information :
Brand

LM290WW2-SSD1Model
Type
a-Si TFT-LCD , LCM
Used For






  •
  •
Screen Size
29.0 inch
Alias
LM290WW2 (SS)(D1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LM290WW2-SSD1 Mechanical Details

Pixel Features :
Resolution
2560(RGB)×1080, CSHD
Dot Pitch(mm)
0.0876×0.2628 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2628×0.2628 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
672.768(H) × 283.824(V)
Bezel Area(mm)
-
Outline Dim.(mm)
693.6(H) × 308.9(V)
Depth(mm)
11/17 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
3-side borderless
Aspect Ratio
21:9 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting holes
Other Spec :
Weight
3.11/3.265Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LM290WW2-SSD1 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
75%
sRGB
99% coverage
Adobe RGB
76% coverage
DCI-P3
78% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM290WW2-SSD1 Interface Detail

Signal Electrical :
Voltage Supply
10.0V (Typ.)
Current Supply
0.53/0.66A (Typ./Max.)
Consumption
5.3/6.6W (Typ./Max.)
Signal Type :
LVDS (4 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05P-51S-H38-E1500
0.5 mm
51 pins
1 pcs

LS Mtron
GT05P-41S-H38-E1500
0.5 mm
41 pins
1 pcs



LG Display LM290WW2-SSD1 Backlight Details

Backlight Features :
Type
WLED
Quantity
18S4P
Position
-
Replacement
-
Shape
4 strings
Life Time
30K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
48.6±3.6V
Current Supply
70/75mA (Typ./Max.)
Consumption
11.5/12.4W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
