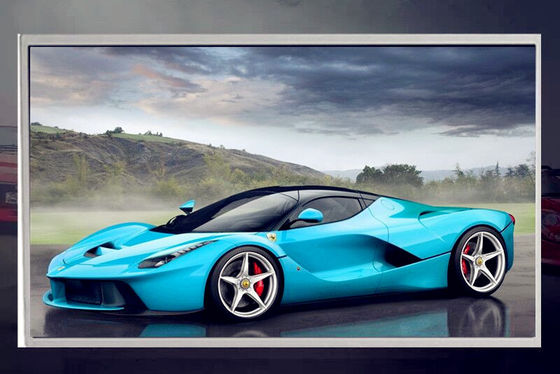

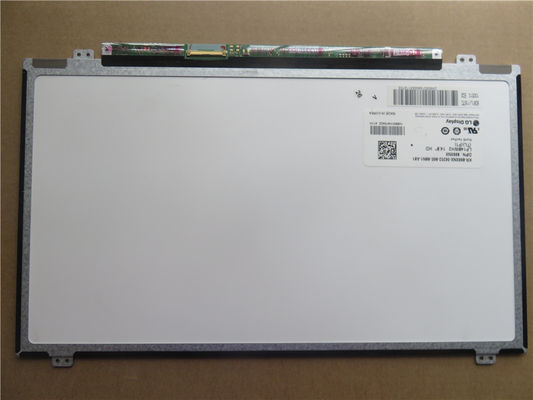

LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY
LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP140WH2-TLA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP140WH2-TLA1 BRAND: LG DISPLAY
SIZE: 14.0 Inch BRIGHTNESS: 200CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 [WXGA] 112PPI
VIEWING ANGLEG: 40/40/10/30 (Min.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LP140WH2-TLA1 TFT LCD Panel

,

Symmetry TFT LCD Panel

,

LVDS TFT LCD Module

LG Display LP140WH2-TLA1 Application Details

Basic Info :
Panel Brand

LP140WH2-TLA1LP140WH2-TLA1 LG Display 14.0" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY 0 8 CompatiblePanel Model
Diagonal Size
14.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP140WH2 (TL)(A1), LGD0201
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



LG Display LP140WH2-TLA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.0755×0.2265 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2265×0.2265 mm (H×V) [112PPI]
Mechanical Size :
Display Area
309.399×173.952 mm (H×V)
Bezel Area
312.40×176.95 mm (H×V)
Outline Dim.
320.4×205.1 mm (H×V)
Outline Depth
3.3/3.6 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Holes & Brackets :
Face mounting holes (8 pcs) on up, down slugs
Other Features :
Weight
320g (Max.)
Surface
Glare (Haze 0%), Hard coating (3H)



LG Display LP140WH2-TLA1 Optical Details

Basic Information :
Brightness
200 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
40/40/10/30 (Min.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
16 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
44%
sRGB
61% coverage
Adobe RGB
46% coverage
DCI-P3
45% coverage
Rec.2020
33% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP140WH2-TLA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
9S4P
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
7.0/12.0/20.0V (Min./Typ./Max.)
Current Input
192mA (Typ.)
Consumption
2.30/2.45W (Typ./Max.)



LG Display LP140WH2-TLA1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
220/255/290mA (Min./Typ./Max.)
Consumption
0.84/0.96W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
IS050-L40B-C10
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
