Product Details:
|
| MODEL NUMBER: | LM375QW1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 37.5 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×1600, UHD, 110PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM375QW1-SSA1 TFT LCD Panel,Symmetry TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|

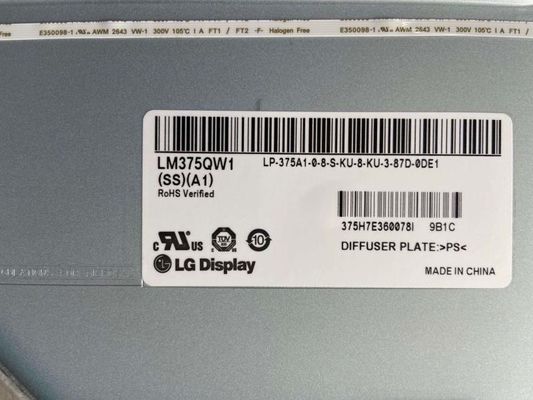

| LM375QW1-SSA1 | a-Si TFT-LCD , LCM | LM375QW1 (SS)(A1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 37.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×1600, UHD | RGB Vertical Stripe | 0.076×0.229 mm | 0.229×0.229 mm [110PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 879.36×366.4 mm | - | 890×378.8 mm | 16.05 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |

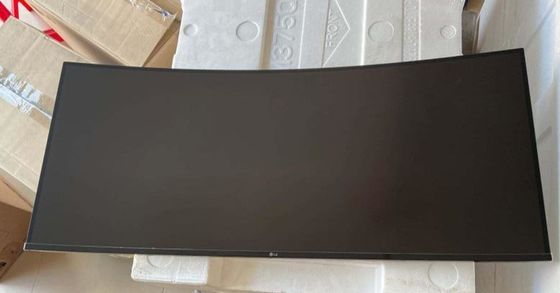

| Curved Display, R2300 | 24:10 | Landscape type | 3-side borderless | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 5.26/5.52kGS (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting holes (13-M3) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 100% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 43.5±3V | 120/125mA (Typ./Max.) | 31.3/33.5W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 2037WR-H12 | 1 pcs | 12 pins | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 0.88/1.17/1.46A (Min./Typ./Max.) | 8.8/11.7/14.6W (Min./Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10 | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-030A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 1300×1140×1100 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
