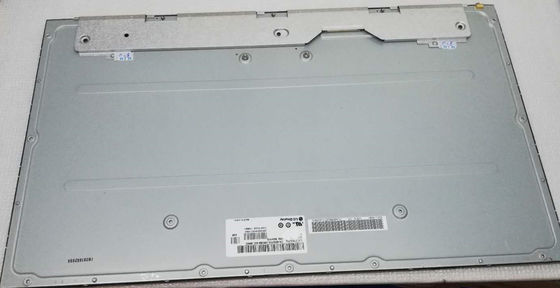

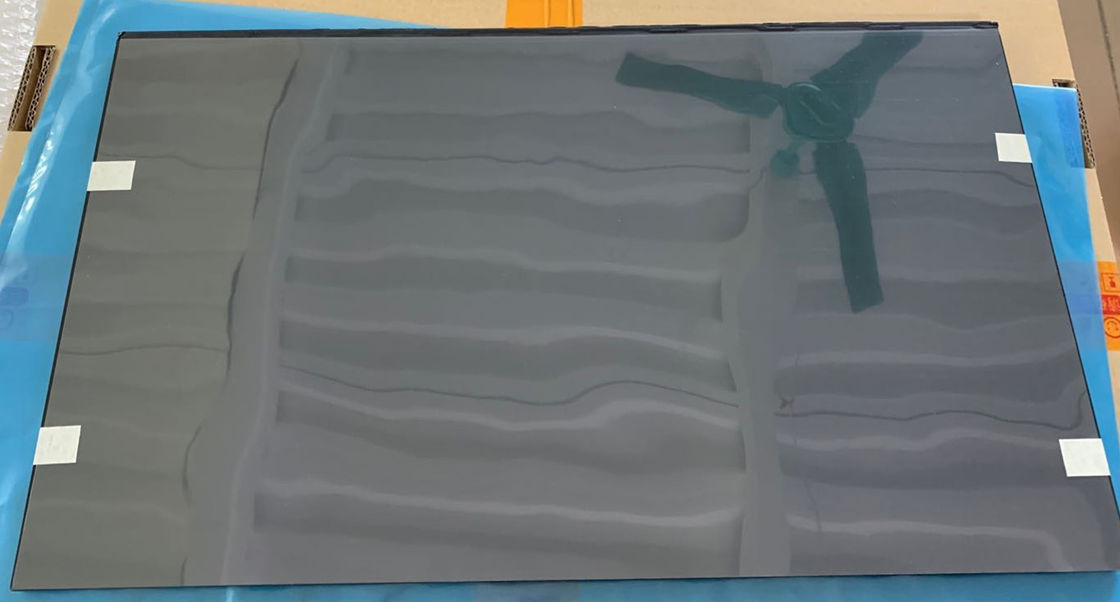

Product Details:
|
| MODEL NUMBER: | LM250WQ3-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 25.0 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 (Quad-HD) 117PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 117PPI Industrial TFT Display,Industrial TFT Display 2560×1440,LM250WQ3-SSA1 Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | LM250WQ3-SSA1 | |
|---|---|---|---|---|

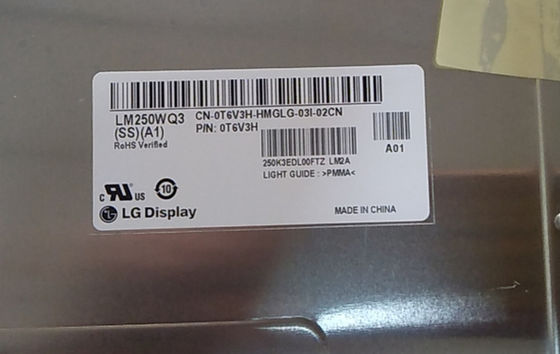

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM250WQ3 (SS)(A1) | |
| Panel Size | 25.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AH-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 2560(RGB)×1440 [Quad-HD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0725×0.2160 mm | Pixel Pitch(W×H) | 0.2160×0.2160 mm [117PPI] | |
| Physical Size : | Active Viewing | 552.96(W)×311.04(H) mm | Overall Dim. | 565(W)×324.1(H) mm |
| Bezel Opening | - | Overall Depth | 9.05/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 4-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 1.99/2.09Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 0.41/0.51A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.1/5.13W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | KN38B-30S-0.5H | 1 pcs | 0.5 mm | 30 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 90/95mA (Typ./Max.) | Input Voltage | 26.3±1.8V | ||
| Consumption | 18.9W (Typ.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 2 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 365×710×448 mm | - |
