LB104S01-TL02 Display 10.4 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LB104S01-TL02 Display 10.4 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LB104S01-TL02

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

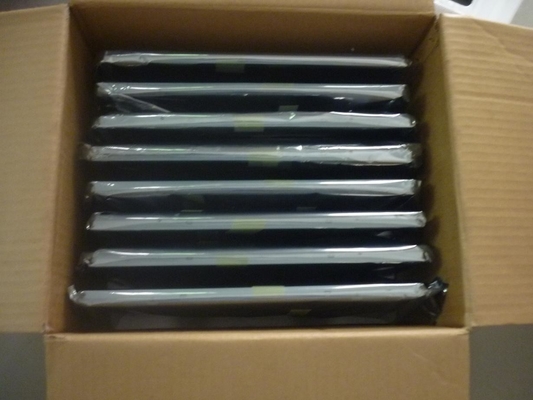

Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

LB104S01-TL02 Display 10.4 800(RGB)×600, SVGA 96PPI 250 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	LB104S01-TL02	BRAND:	LG DISPLAY
SIZE:	10.4INCH	BRIGHTNESS:	250 Cd/m²
Lamp Type:	WLED	RESOLUTION:	800(RGB)×600, SVGA 96PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Outline:	224.5(H)×172(V) ×6(D) Mm

LG Display LB104S01-TL02 Mechanical Details

Pixel Features :

Number of Pixel

800(RGB)×600, SVGA

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.088×0.264 mm

Pixel Pitch(W×H)

0.264×0.264 mm [96PPI]

Physical Size :

Active Viewing

211.2(W)×158.4(H) mm

Overall Dim.

224.5(W)×172(H) mm

Bezel Opening

214.2(W)×161.8(H) mm

Overall Depth

5.7±0.3 mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

4:3

Shape Style

Fixation :

Side mounting holes (4-M2) on left, right bezel

Other Detail :

Mass

290/300g (Typ./Max.)

Surface

Antiglare, Hard coating (3H)

LG

LG Display LB104S01-TL02 Optical Details

Basic Information :

Luminance

250 cd/m² (Typ.)

Contrast Ratio

400:1 (Typ.) (Transmissive)

Good View at

6 o'clock

Response Speed

6/19 (Typ.)(Tr/Td) ms

Viewing Angle

65/65/45/55 (Min.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Color Performance :

Chromaticity

Wx:0.305; Wy:0.320

Support Color

262K (6-bit)

Color Temperature

7037K

White Variation

1.40 (Max.)(5 points)

1931 Color Gamut :

NTSC Ratio

46%

sRGB

63% coverage

Adobe RGB

48% coverage

DCI-P3

47% coverage

Rec.2020

34% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LB104S01-TL02 Interface Details

Signal Electrical :

Input Current

205/230mA (Typ./Max.)

Input Voltage

3.3V (Typ.)

Consumption

0.68/0.76W (Typ./Max.)

Signal Interface

LVDS (1 ch, 6-bit)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

LS Mtron

GT100-20P-LS-SMT

1.0 mm

20 pins

1 pcs

LVDS-20P1C6B-090A

LG Display LB104S01-TL02 Lightting Details

Lamp Features :

Lamp Type

CCFL

Amount

1 pcs

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

Straight

Lamp Life

20K(Min.) (Hours)

Lamp Electrical :

Input Voltage

488/500/640V (Min./Typ./Max.)

Input Current

2.0/6.0/6.5mA (Min./Typ./Max.)

Frequency

45/60/80KHz (Min./Typ./Max.)

Turn-on Voltage

845/1015V (Max.)(Ta=+25/0℃)

Consumption

3.0/3.3W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BHSR-02VS-1

3.5 mm

2 pins

1 pcs

BLL-2PINS-HL

Backlight Driver :

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
