Product Details:
|
| MODEL NUMBER: | LM276SD1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.6INCH | BRIGHTNESS: | 300 Cd/m² |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×2880 139PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Outline: | 476.7(W)×540.55(H)×13.8(D) Mm |
| Screen Size : | 27.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×2880 | RGB Vertical Stripe | 0.06053×0.18159 mm | 0.18159×0.18159 mm [139PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 464.87×522.973 mm | - | 476.7×540.55 mm | 8.8/13.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 8:9 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare (Haze 25%), Hard coating (3H) | ||

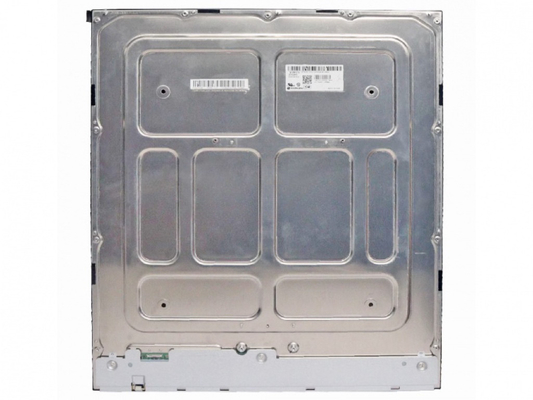

| Holes & Brackets : | Rear mounting holes | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | 15S4P | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 44.6V (Typ.) | 110mA (Typ.) | 19.6W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10 | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-030A | |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM276SD1-SSA1 | a-Si TFT-LCD , LCM | LM276SD1 (SS)(A1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
