LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA 94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA  94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY
LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA  94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA  94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA  94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

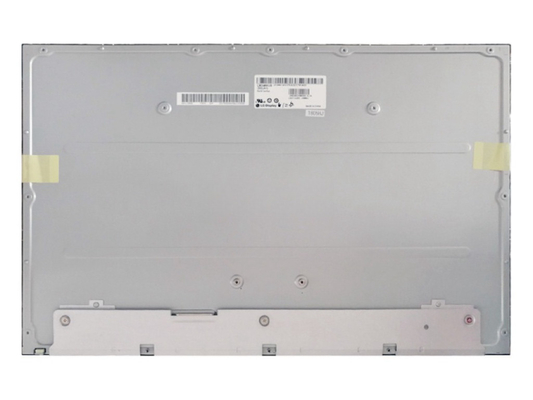

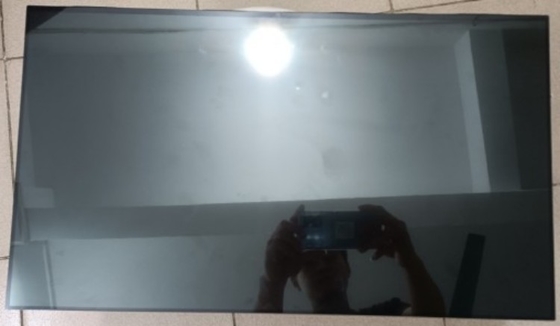

Large Image :  LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA 94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM240WUB-SSA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA 94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM240WUB-SSA1 BRAND: LG DISPLAY
SIZE: 24INCH BRIGHTNESS: 350 Cd/m²
Lamp Type: WLED RESOLUTION: 1920(RGB)×1200, WUXGA 94PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Outline: 528.2(W)×335.9(H) ×12.8(D) Mm



LG Display LM240WUB-SSA1 Mechanical Details

Pixel Features : Resolution 1920(RGB)×1200, WUXGA Dot Pitch(mm) 0.090×0.270 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.270×0.270 (H×V) [94PPI]
Mechanical Size : Active Area(mm) 518.4(H) × 324(V) Bezel Area(mm) -
Outline Dim.(mm) 528.2(H) × 335.9(V) Depth(mm) 8.8/12.8 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape 4-side borderless
Aspect Ratio 16:10 (H:V) Orientation Landscape type
Mounting : Rear mounting holes (9-M3)
Other Spec : Weight 2.12/2.22Kgs (Typ./Max.) Treatment Antiglare (Haze 25%), Hard coating (3H)



LG Display LM240WUB-SSA1 Optical Details

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode IPS, Normally Black, Transmissive
Best View on Symmetry Response(ms) 14 (Typ.)(G to G)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamut : NTSC Ratio 76% sRGB 99% coverage
Adobe RGB 77% coverage DCI-P3 79% coverage
Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM240WUB-SSA1 Interface Details

Signal Electrical : Voltage Supply 5.0V (Typ.) Current Supply 485/610mA (Typ./Max.)
Consumption 2.45/3.05W (Typ./Max.)
Signal Type : LVDS (2 ch, 8-bit) Signal Voltage -
Interface Features : Position   Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
UJU IS100-L30O-C23 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160B



LG Display LM240WUB-SSA1 Backlight Details

Backlight Features: Shape 4 strings Type WLED Position Edge light type (Bottom side)
Replacement - Quantity 14S4P Life Time 30K(Min.) (Hours)
Lamp Electrical : Voltage Supply 40.3±2.9V Current Supply 80/85mA (Typ./Max.)
Consumption 12.9/13.9W (Typ./Max.)
Interface Features : Position   Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BM06B-SHJS-TB(HF) 1 pcs 6 pins 1.0 mm BLE-6PINS-CCAACC
Backlight Driver : No



LG Display LM240WUB-SSA1 Application Details

Basic Information : Brand   Model LM240WUB-SSA1
Type LCM a-Si TFT-LCD Used For
Screen Size 24.0" Alias -
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C
RoHS   Vibration -

 FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





LM240WUB-SSA1LG Display 24" 1920(RGB)×1200, WUXGA  94PPI 350 cd/m² INDUSTRIAL LCD DISPLAY 0
