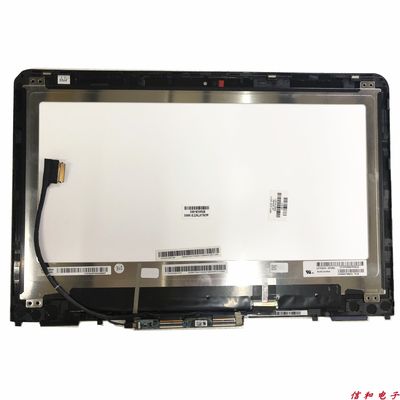

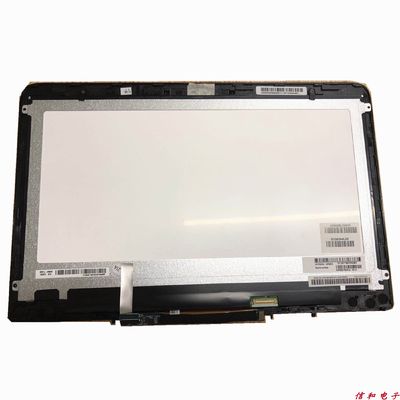

Product Details:
|
| MODEL NUMBER: | LP133WH2-SPB3 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 118PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 1366×768 TFT LCD Screen,118PPI TFT LCD Screen,LP133WH2-SPB3 Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LP133WH2-SPB3 | |
|---|---|---|---|---|
| Diagonal Size | 13.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LP133WH2 (SP)(B3) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.0716×0.2148 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2148×0.2148 mm (H×V) [118PPI] | |
| Mechanical Size : | Display Area | 293.42×164.97 mm (H×V) | Bezel Area | 296.45×168.3 mm (H×V) |
| Outline Dim. | 317.2×188.7 mm (H×V) | Outline Depth | 2.8/3.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs | |||
| Other Features : | Weight | 275g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 12K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/20.0V (Min./Typ./Max.) | Current Input | 208/225mA (Typ./Max.) | ||
| Consumption | 2.55/2.7W (Typ./Max.) | |||||
| Signal Systerm : | eDP (1 Lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 288/333mA (Typ./Max.) | ||
| Consumption | 0.95/1.1W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS050-L30B-C10 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A | |

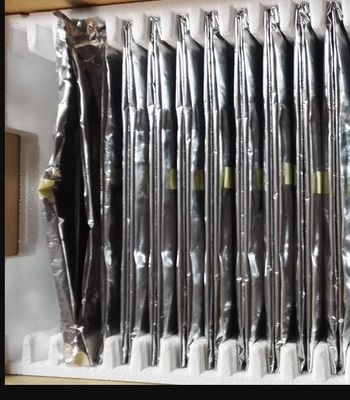

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 20 pcs / box | - | 478×365×244 mm |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
