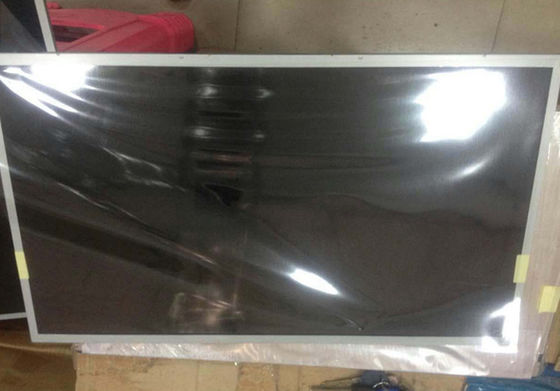

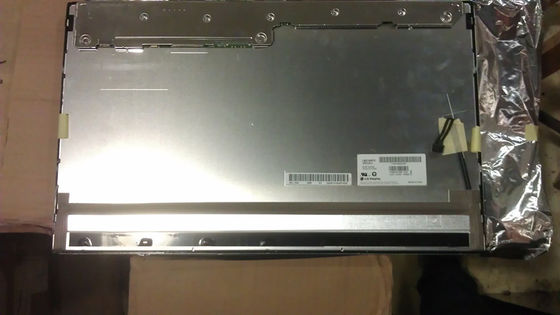

Product Details:
|

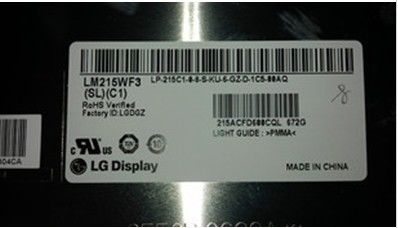

| MODEL NUMBER: | LM215WF3-SDC2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 21.5 Inch | BRIGHTNESS: | 365CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 102PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 21.5in Square LCD Panel,365cd/m2 Square LCD Panel,LM215WF3-SDC2 TFT LCD Screen |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM215WF3-SDC2 | a-Si TFT-LCD , LCM | LM215WF3 (SD)(C2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 365 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 6.5/7.5 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 80% | 58% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(13 points) | ||
| Panel Size : | 21.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.2475×0.2475 [102PPI] | 0.0825×0.2475 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 475.2(H) × 267.3(V) | 479.84(H) × 271.31(V) | 495.6(H) × 305.25(V) | 11.95/15.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.10Kgs (Typ.) | - | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 2 strings | 2 strings | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 52.8±3.2V | 350mA (Typ.) | 36.96/39.2W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | H401K-D06N-12B | 2.0 mm | 6 pins | 1 pcs | BLE-6PINS-CANACN | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 416/520/624mA (Min./Typ./Max.) | 6.24/7.50W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20525-030E-01 | 0.4 mm | 30 pins | 1 pcs | EDP-30P4L-020A | |
| molex | 53780-8606 | 1.25 mm | 6 pins | 1 pcs | ||

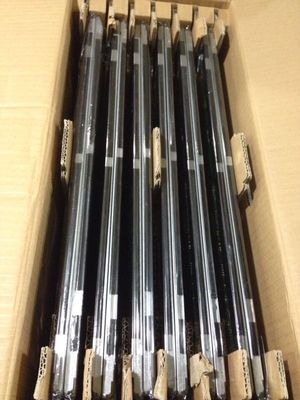

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 7 pcs / box | - | 360×310×562 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
