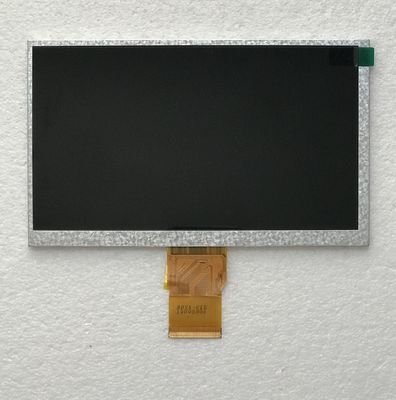

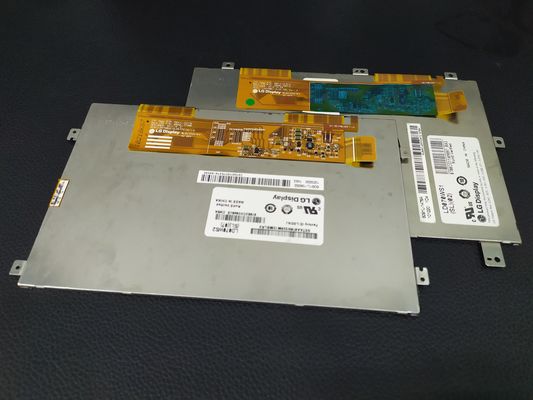

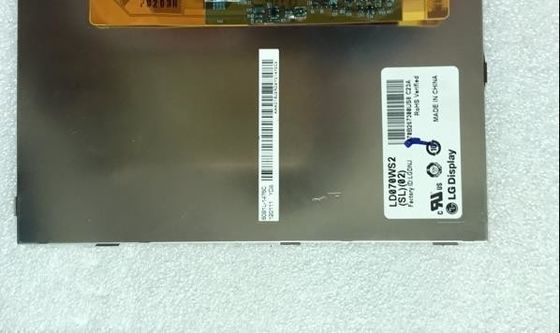

Product Details:
|
| MODEL NUMBER: | LD070WS2-SL02 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0"inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1024(RGB)×600, WSVGA, 169PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | 1024×600 Square Tft Screen,169PPI Square Tft Screen,LD070WS2-SL02 Industrial TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LD070WS2-SL02 | a-Si TFT-LCD , LCM | LD070WS2 (SL)(02) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C |
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.050×0.150 mm | 0.150×0.150 mm [169PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 153.6×90 mm | - | 162.8×102.9 mm | 2.47±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 17:10 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 94.0/95.0g (Typ./Max.) | - | Hard coating | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, up, down slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Min.)(CR≥10) | 50 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 262K/16.7M (6-bit + Hi-FRC) | X:0.310; Y:0.340 | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 5S4P | Array | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 250/288mA (Typ./Max.) | 0.83/0.95W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) + SPI | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | AA01B-P030VA1 | 1 pcs | 30 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 44 pcs / box | - | 478×365×244 mm (L×W×H) |
