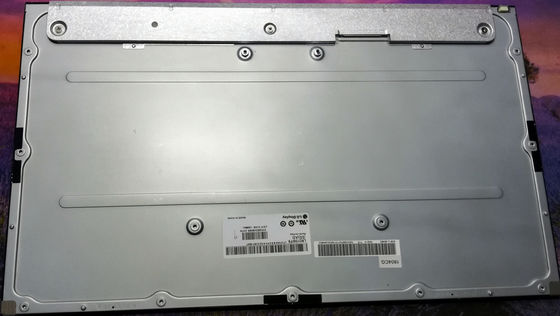

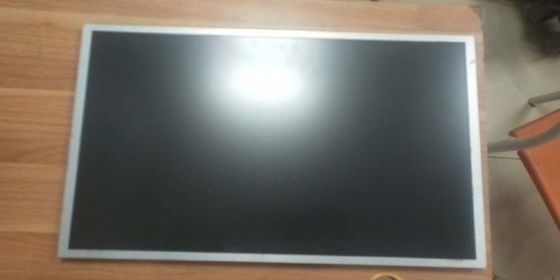

Product Details:
|
| MODEL NUMBER: | LM215WF9-SSA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 21.5 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 102PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LM215WF9-SSA2 TFT LCD Panel,Symmetry TFT LCD Panel,LVDS TFT LCD Module |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|

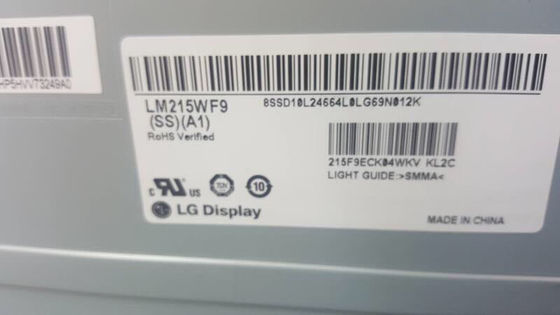

| LM215WF9-SSA2 | a-Si TFT-LCD , LCM | LM215WF9 (SS)(A2) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 21.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08265×0.24795 mm | 0.24795×0.24795 mm [102PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 476.064×267.786 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | 3-side borderless | |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (6-bit + Hi-FRC) | - | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm. As a IPS, Normally Black, Transmissive LCM product, LM215WF9-SSA2 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side). LM215WF9-SSA2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM215WF9-SSA2 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
