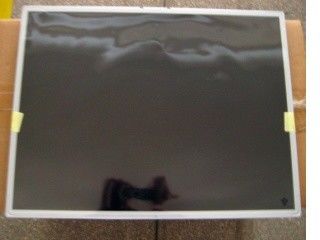

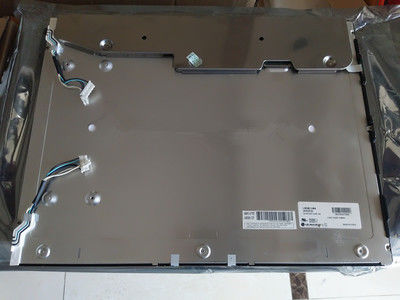

Product Details:
|
| MODEL NUMBER: | LM201U05-SLL2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 20.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×1200, UXGA, 99PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LM201U05-SLL2 Industrial TFT Display,VGA 122PPI Tft Lcd Display,VGA Touch Lcd Video Display |
||

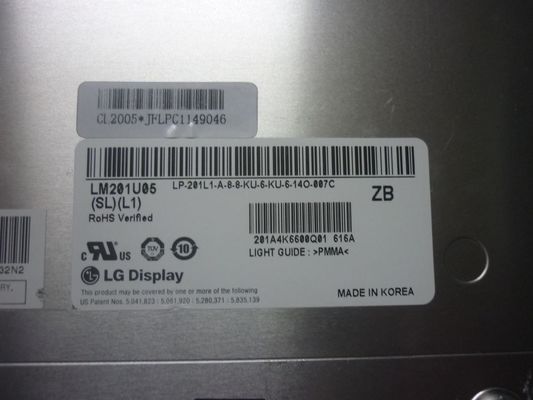

| Basic Detail : | Manufacturer | Model Name | LM201U05-SLL2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM201U05 (SL)(L2) | |
| Panel Size | 20.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1600(RGB)×1200 [UXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.085×0.255 mm | Pixel Pitch(W×H) | 0.255×0.255 mm [99PPI] | |
| Physical Size : | Active Viewing | 408(W)×306(H) mm | Overall Dim. | 432(W)×331.5(H) mm |
| Bezel Opening | 413.0(W)×311.0(H) mm | Overall Depth | 17.4/25.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 3.20/3.25Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 332/382mA (Typ./Max.) | Input Voltage | 18.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.98/6.88W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30R-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-010A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6 pcs | Life | 45K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/7.0/8.0mA (Min./Typ./Max.) | Input Voltage | 670/700/825V (Min./Typ./Max.) | ||
| Frequency | 40/50/80KHz (Min./Typ./Max.) | Turn-on Voltage | 1150/1450V (Max.)(Ta=+25/0℃) | |||
| Consumption | 29.4/32.3W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 2 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| JST | BHR-05VS-1 | 2 pcs | 4.0 mm | 5 pins | BLL-5PINS-HHNLL | |
| Backlight Driver : | No | |||||

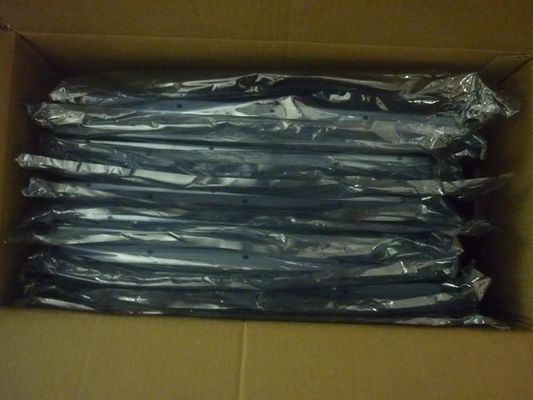

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 6 pcs / box | 525×314×410 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
