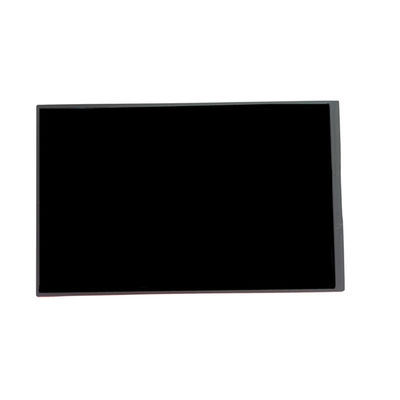

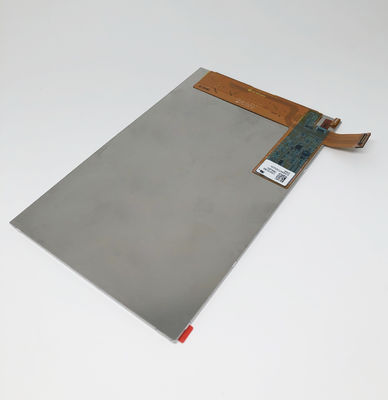

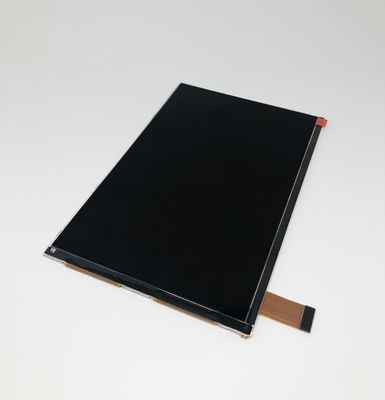

Product Details:
|
| MODEL NUMBER: | LD070WX4-SM01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 490CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×1280 [WXGA] 215PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LD070WX4-SM01 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LD070WX4-SM01 | a-Si TFT-LCD , LCM | LD070WX4 (SM)(01) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -10 ~ 60 °C | -20 ~ 70 °C |
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×1280, WXGA | RGB Vertical Stripe | 0.03925×0.11775 mm | 0.11775×0.11775 mm [215PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 94.2×150.72 mm | - | 104.32×161.67 mm | 2.12/3.57 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 10:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 85.0g (Max.) | - | Hard coating | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 490 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 50 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 16.7M (6-bit + Hi-FRC) | X:0.310; Y:0.340 | |
| White Uniformity : | 1.25/1.43 (Typ./Max.) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 5S5P | 5 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 15.0/16.5V (Typ./Max.) | 20.0/20.5mA (Typ./Max.) | 1.5/1.65W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 85.0/98.6mA (Typ./Max.) | 0.31/0.5W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AXT634124 | 1 pcs | 34 pins | 0.4 mm | ||
