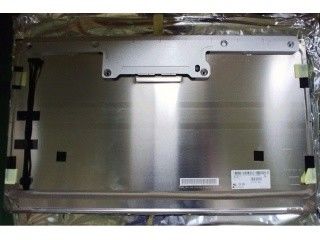

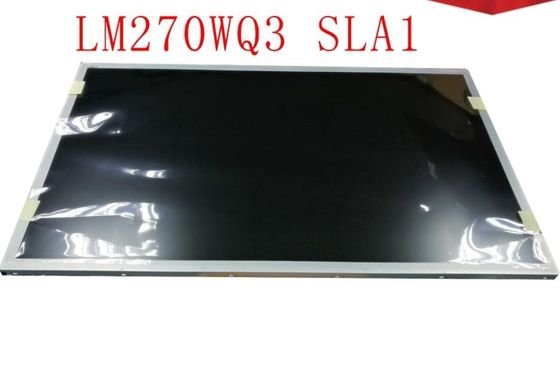

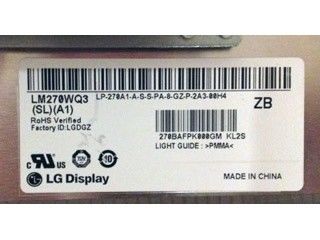

LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY
LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM270WQ3-SLA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM270WQ3-SLA1 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM270WQ3-SLA1 BRAND: LG DISPLAY
SIZE: 27.0"inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440 [Quad-HD] 108PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA 800x480 Industrial TFT Display

,

LM270WQ3-SLA1 Tft Lcd Display

,

VGA Touch Lcd Video Display

LG Display LM270WQ3-SLA1 Application Details

Basic Detail :
Manufacturer

LM270WQ3-SLA1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM270WQ3 (SL)(A1)
Panel Size
27.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM270WQ3-SLA1 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
6 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AH-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
104%
sRGB
100% coverage
Adobe RGB
99% coverage
DCI-P3
94% coverage
Rec.2020
77% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WQ3-SLA1 Mechanical Details

Pixel Features :
Number of Pixel
2560(RGB)×1440, Quad-HD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0777×0.2331 mm
Pixel Pitch(W×H)
0.2331×0.2331 mm [108PPI]
Physical Size :
Active Viewing
596.736(W)×335.664(H) mm
Overall Dim.
630(W)×368.2(H) mm
Bezel Opening
602.0(W)×340.4(H) mm
Overall Depth
13.3/18.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Normal bezel
Fixation :
Side mounting holes
Other Detail :
Mass
3.60/3.78Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM270WQ3-SLA1 Interface Detail

Signal Electrical :
Input Current
1.15/1.5A (Typ./Max.)
Input Voltage
12.0V (Typ.)
Consumption
13.8/17.94W (Typ./Max.)
Signal Interface
LVDS (4 ch, 10-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
IS050-C51B-C39-A
0.5 mm
51 pins
1 pcs

UJU
IS050-C41B-C39-A
0.5 mm
41 pins
1 pcs



LG Display LM270WQ3-SLA1 Lightting Details

Lamp Features :
Lamp Type
GB-r LED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
62/62V (Typ.)(Green/Blue)
Input Current
105/65mA (Typ.)(Green/Blue)
Consumption
42.2/45.0W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
E&T
H401K-D12N-12B
2.0 mm
12 pins
1 pcs
BLE-12PINS-CCAACCCCAACC
Backlight Driver :
No

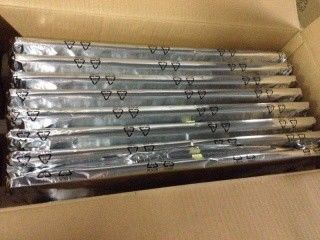

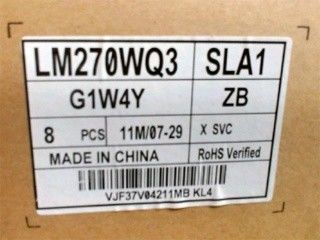

LG Display LM270WQ3-SLA1 Packing Details

Package Box : Amount Size (L×W×H) Weight
8 pcs / box - 355×700×430 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
