LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

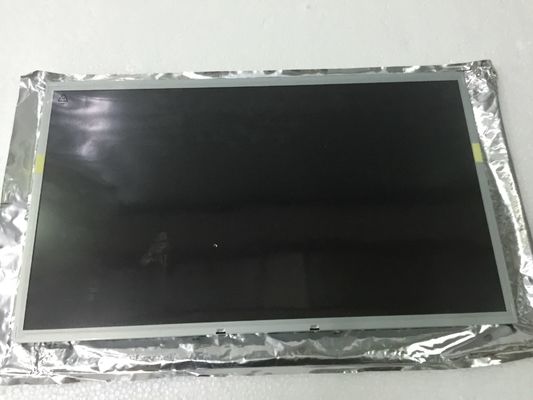

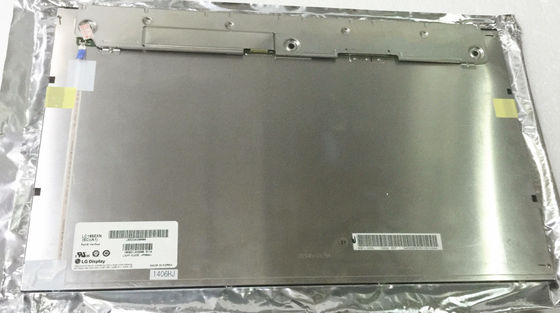

Large Image :  LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LC185EXN-SDA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LC185EXN-SDA1 BRAND: LG DISPLAY
SIZE: 18.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 (WXGA) 84PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

WVGA 800x480 Industrial TFT Display

,

LC185EXN-SDA1 Tft Lcd Display

,

VGA Touch Lcd Video Display

LG Display LC185EXN-SDA1 Application Details

Basic Detail :
Manufacturer

LC185EXN-SDA1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name

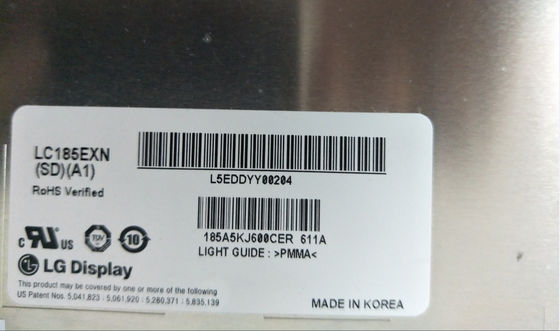

LC185EXN (SD)(A1)
Panel Size
18.5 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LC185EXN-SDA1 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
6 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Operating Mode
S-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.279; Wy:0.292
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
9972K
White Variation
1.30 (Max.)(5 points)



LG Display LC185EXN-SDA1 Mechanical Details

Pixel Features :
Number of Pixel
1366(RGB)×768, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.100×0.300 mm
Pixel Pitch(W×H)
0.300×0.300 mm [84PPI]
Physical Size :
Active Viewing
409.8(W)×230.4(H) mm
Overall Dim.
430.4(W)×254.6(H) mm
Bezel Opening
413.4(W)×234.0(H) mm
Overall Depth
11.9 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.04/1.10Kgs (Typ./Max.)
Surface
Antiglare (Haze 13%), Hard coating (3H)



LG Display LC185EXN-SDA1 Interface Detail

Signal Electrical :
Input Current
690/897mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
2.9/3.77W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
KDF71G-30S-1H
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-262A



LG Display LC185EXN-SDA1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM14B-SRSS-TB
1.0 mm
14 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
24.0±1.2V
Input Current
0.625/0.66A (Typ./Max.)
Consumption
15.0/15.9W (Typ./Max.)



LG Display LC185EXN-SDA1 Packing Details

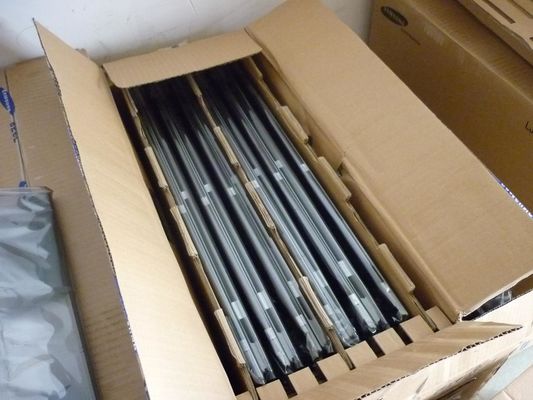

Package Box : Amount Size (L×W×H) Weight
12 pcs / box - 550×322×333 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
