Product Details:
|
| MODEL NUMBER: | LM238WF2-SSM2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 23.8 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 92PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LM238WF2-SSM2 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | LM238WF2-SSM2 | |
|---|---|---|---|---|
| Diagonal Size | 23.8" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM238WF2 (SS)(M2) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0915×0.2745 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2745×0.2745 mm (H×V) [92PPI] | |
| Mechanical Size : | Display Area | 527.04×296.46 mm (H×V) | Bezel Area | - |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless | |

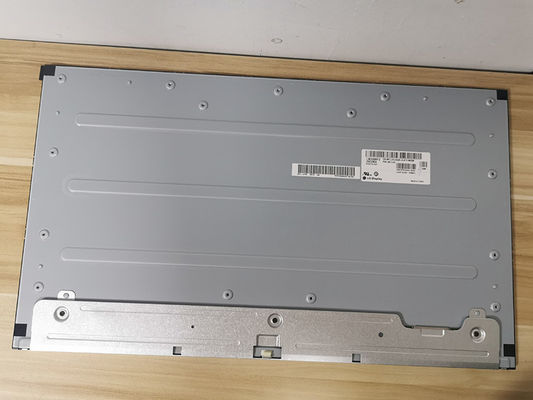

| Holes & Brackets : | Rear mounting holes (15-M3) | |||
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0915×0.2745 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2745×0.2745 mm (H×V) [92PPI] | |
| Mechanical Size : | Display Area | 527.04×296.46 mm (H×V) | Bezel Area | - |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting holes (15-M3) | |||
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm. As a AH-IPS, Normally Black, Transmissive LCM product, LM238WF2-SSM2 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM238WF2-SSM2 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
