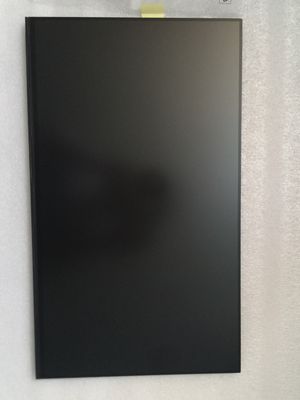

Product Details:
|

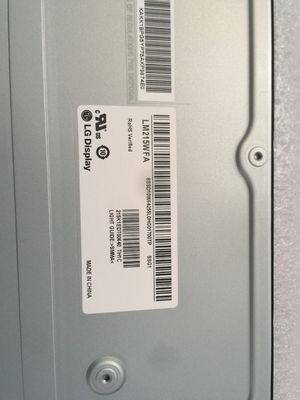

| MODEL NUMBER: | LM215WFA-SSE1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 21.5 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 102PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LM215WFA-SSE1 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM215WFA-SSE1 | a-Si TFT-LCD , LCM | LM215WFA (SS)(E1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 21.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08265×0.24795 mm | 0.24795×0.24795 mm [102PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 476.064×267.786 mm | - | 484.5×284.4 mm | 8.49/12.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | 3-side borderless | |
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| 10 points | USB | With touch controller | In-Cell Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.61/1.69Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||

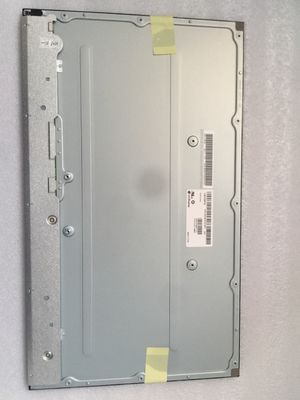

| Holes & Brackets : | Rear mounting holes (13-M3) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 96% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 30K(Min.) | 13S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 36.8±2.6V | 60/65mA (Typ./Max.) | 8.83/9.46W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 647/808mA (Typ./Max.) | 3.23/4.04W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 9 pcs / box | - | 553×315×360 mm (L×W×H) |
