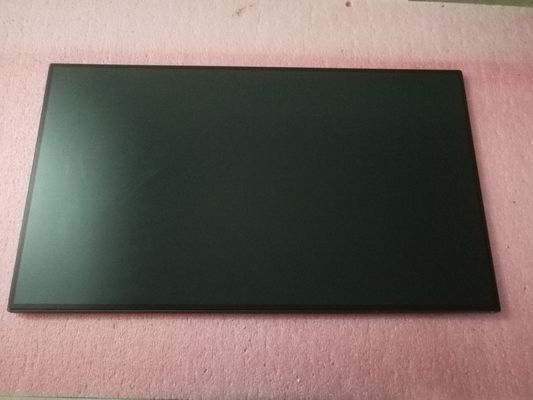

Product Details:
|
| MODEL NUMBER: | LM315WR2-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 32.0INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 139PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGEV: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LM315WR2-SSA1 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Detail : | Manufacturer | Model Name | LM315WR2-SSA1 | |
|---|---|---|---|---|

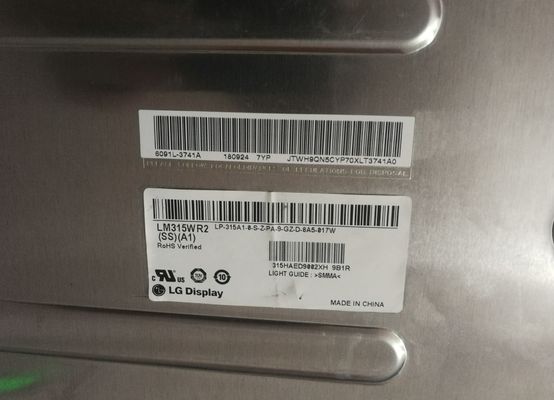

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM315WR2 (SS)(A1) | |
| Panel Size | 32.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 450 cd/m² (Typ.), HDR600 | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 87% coverage | DCI-P3 | 98% coverage | |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.06053×0.18159 mm | Pixel Pitch(W×H) | 0.18159×0.18159 mm [139PPI] | |
| Physical Size : | Active Viewing | 697.31(W)×392.23(H) mm | Overall Dim. | 718.2(W)×414.3(H) mm |
| Bezel Opening | - | Overall Depth | 11.82/15.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 4-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 3.55/3.73Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 0.85/1.06A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.5/10.6W (Typ./Max.) | Signal Interface | eDP (4 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 85/90mA (Typ./Max.) | Input Voltage | 28.8±1.0V | ||
| Consumption | 36.7/38.0W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 12507HS-H10G1 | 2 pcs | 1.25 mm | 10 pins | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 8 pcs / box | 814×358×509 mm | - |
