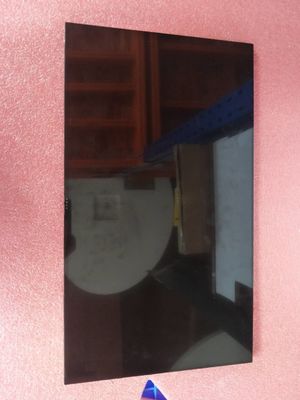

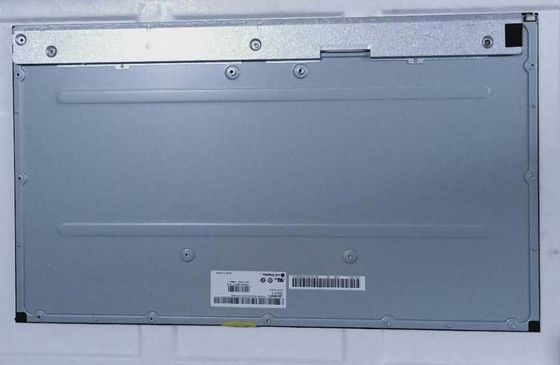

Product Details:
|
| MODEL NUMBER: | LM238WF2-SSF2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 23.8 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 92PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LM238WF2-SSF2 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | LM238WF2-SSF2 | |
|---|---|---|---|---|
| Diagonal Size | 23.8" | Application | ||

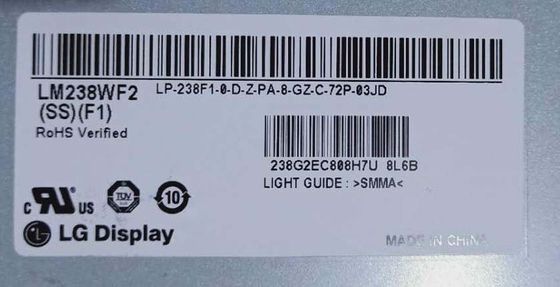

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM238WF2 (SS)(F2) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0915×0.2745 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2745×0.2745 mm (H×V) [92PPI] | |
| Mechanical Size : | Display Area | 527.04×296.46 mm (H×V) | Bezel Area | - |
| Outline Dim. | 535×313 mm (H×V) | Outline Depth | 8.7/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting poles (15-M3) | |||
| Other Features : | Weight | 1.91/2.01Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AH-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 15S3P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 45.3±3V | Current Input | 85/90mA (Typ./Max.) | ||
| Consumption | 11.6/12.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAANC | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 410/510mA (Typ./Max.) | ||
| Consumption | 2.05/2.55W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160B | |

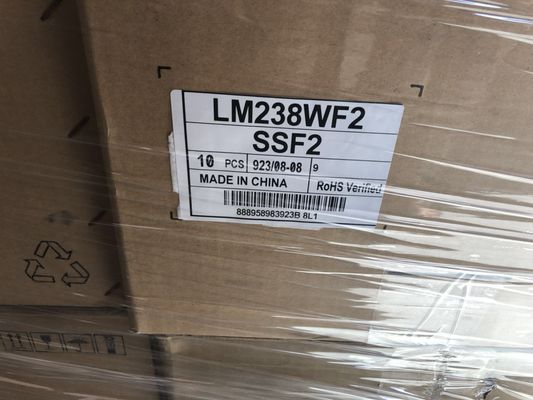

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 635×370×400 mm |
