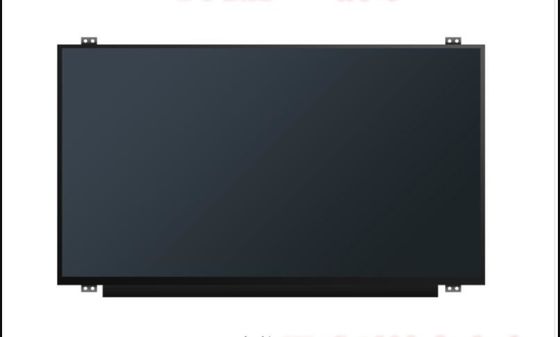

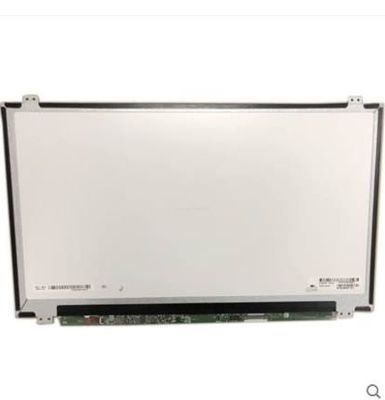

Product Details:
|
| MODEL NUMBER: | LP156WF6-SPL2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 15.6 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 141PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LP156WF6-SPL2 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model | LP156WF6-SPL2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.6" | Alias | LP156WF6 (SP)(L2) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 340/350g (Typ./Max.) | Treatment |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | AH-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 12K(Min.) (Hours) | |

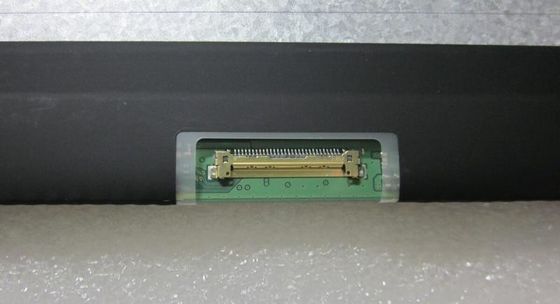

| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Driver Electrical : | Voltage Supply | 5.5/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, net weight of 340/350g (Typ./Max.). As a AH-IPS, Normally Black, Transmissive LCM product, LP156WF6-SPL2 can provides 700:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours. LP156WF6-SPL2 utilizes eDP (2 Lanes) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP156WF6-SPL2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
