Product Details:
|

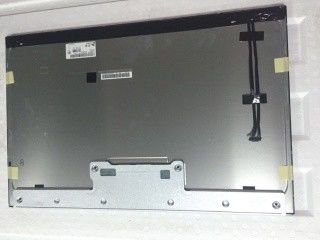

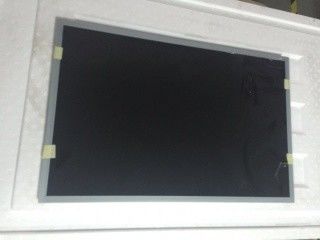

| MODEL NUMBER: | LM300WQ6-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 30.0"inch | BRIGHTNESS: | 350 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1600, WQXGA, 101PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LM300WQ6-SLA1 Tft Lcd Display,VGA Touch Lcd Video Display |
||

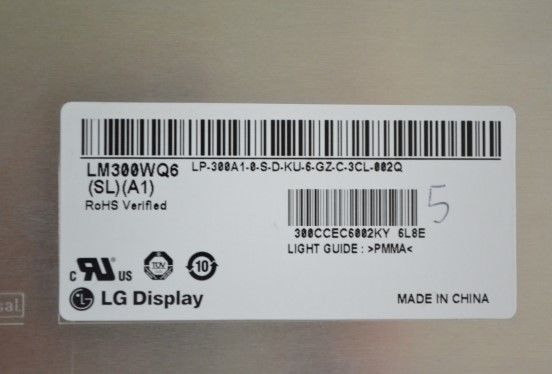

| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM300WQ6-SLA1 | a-Si TFT-LCD , LCM | LM300WQ6 (SL)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 30.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1600, WQXGA | RGB Vertical Stripe | 0.0835×0.2505 mm | 0.2505×0.2505 mm [101PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 641.28×400.8 mm | 646.3×405.8 mm | 677.3×436.8 mm | 11.0/18.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 4.15/4.36Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 104% | 100% | 99% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 77% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.99/1.19A (Typ./Max.) | 12.0V (Typ.) | 11.9/14.3W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (4 ch, 10-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS050-C51B-C39-A | 1 pcs | 0.5 mm | 51 pins | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| GB-r LED | Edge light type | - | - | 30K(Min.) | - | |
| GB-r LED Electrical : | Current Input | Voltage Input | Consumption | |||
| 105/65mA (Typ.)(Green/Blue) | 68.2/68.2V (Typ.)(Green/Blue) | 46.4/49.4W (Typ./Max.) | ||||
| Interface Features : | Position | Type | GB-r LED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | H401K-D12N-12B | 1 pcs | 2.0 mm | 12 pins | BLE-12PINS-CCAACCCCAACC | |

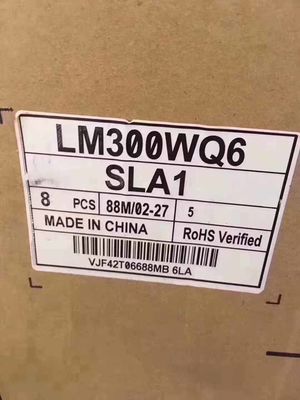

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 8 pcs / box | - | 830×348×500 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
