Product Details:
|
| MODEL NUMBER: | LD490EUE-FHC1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 49 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 45PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WVGA 800x480 Industrial TFT Display,LD490EUE-FHC1 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Detail : | Manufacturer | Model Name | LD490EUE-FHC1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD490EUE (FH)(C1) | |
| Panel Size | 49 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 65 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 12 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | S-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.281; Wy:0.288 | Support Color | 16.7M (8-bit) |
| Color Temperature | 9966K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 95% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.18642×0.55926 mm | Pixel Pitch(W×H) | 0.55926×0.55926 mm [45PPI] | |
| Physical Size : | Active Viewing | 1073.78(W)×604(H) mm | Overall Dim. | 1096.2(W)×632.5(H) mm |
| Bezel Opening | 1078.4(W)×608.6(H) mm | Overall Depth | 17.0/29.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 10.8/11.0Kgs (Typ./Max.) | Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Signal Electrical : | Input Current | 360/468mA (Typ./Max.) | Input Voltage | 12.7V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.3/5.7W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 170mA (Typ.) | Input Voltage | 129.2/138.2/147.2V (Min./Typ./Max.) | ||
| Consumption | 47W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | SMH200-H07M | 1 pcs | 2.0 mm | 7 pins | BEL-7PINS-CNANCNA | |
| Backlight Driver : | No | |||||

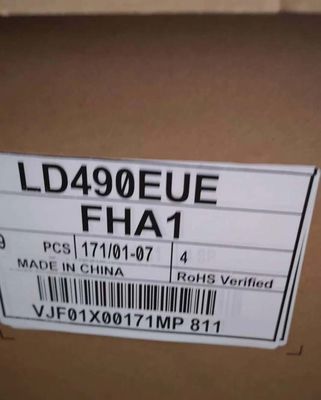

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 22 pcs / box | 1300×1140×825 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
