Product Details:
|
| MODEL NUMBER: | LD550EUN-UHA3 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 700CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 40PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA 800x480 Industrial TFT Display,LD550EUN-UHA3 Tft Lcd Display,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LD550EUN-UHA3 | a-Si TFT-LCD , LCM | LD550EUN (UH)(A3) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 55" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.210×0.630 mm | 0.630×0.630 mm [40PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1209.6×680.4 mm | 1215.6×686.4 mm | 1227.4×698.2 mm | 19.0/32.2 (Typ./Max.) mm | |

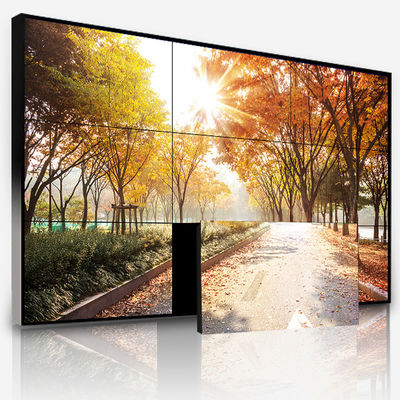

| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Videowall Seam |
| Flat Rectangle | 16:9 | Landscape / Portrait | 17.8 mm (Active to Active) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 16.5/17.0Kgs (Typ./Max.) | - | Antiglare (Haze 10%), Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9972K | 16.7M/1.07B (8-bit / 8-bit + Dithering) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 98% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.54 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 60K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 20022WR-H14B2 | 1 pcs | 14 pins | 2.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0±2.4V | 4.4/4.8A (Typ./Max.) | 104.7/115.3W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 755/982mA (Typ./Max.) | 9.1/11.8W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8/10-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 18 pcs / box | - | 1440×1140×950 mm (L×W×H) |
