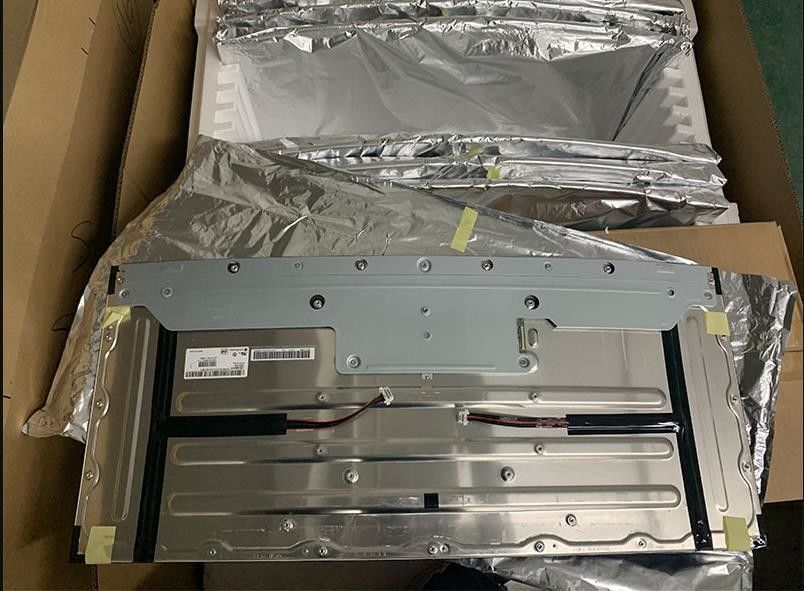

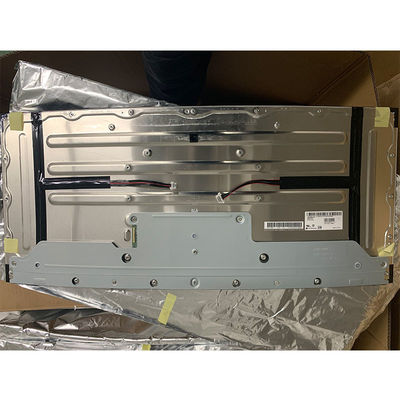

34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3

34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3
34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3 34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3 34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3 34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3

Large Image :  34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM340UW1-SSA3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3

Description
MODEL NUMBER: LM340UW1-SSA3 BRAND: LG DISPLAY
SIZE: 34.0INCH BRIGHTNESS: 320CD/M2
Lamp Type: WLED RESOLUTION: 3440(RGB)×1440 109PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

3440×1440 Square Tft Screen

,

109PPI Square Tft Screen

,

LM340UW1-SSA3 Industrial LCD Panel

LG Display LM340UW1-SSA3 Application Details

Basic Information :
Brand

LM340UW1-SSA3Model
Type
a-Si TFT-LCD , LCM
Used For






  •
  •
Screen Size
34 inch
Alias
LM340UW1 (SS)(A3)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LM340UW1-SSA3 Mechanical Details

Pixel Features :
Resolution
3440(RGB)×1440
Dot Pitch(mm)
0.0775×0.2535 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2325×0.2325 (H×V) [109PPI]
Mechanical Size :
Active Area(mm)
799.8(H) × 334.8(V)
Bezel Area(mm)
-
Outline Dim.(mm)
820.8(H) × 361(V)
Depth(mm)
11.8/19.8 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
3-side borderless
Aspect Ratio
21:9 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting poles (13-M3)
Other Spec :
Weight
3.79/3.98Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LM340UW1-SSA3 Optical Details

Basic Information :
Luminance(cd/m²)
320 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AH-IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
77%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
80% coverage
Rec.2020
57% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM340UW1-SSA3 Interface Detail

Signal Electrical :
Voltage Supply
10.0V (Typ.)
Current Supply
0.8/1.0A (Typ./Max.)
Consumption
8.0/10W (Typ./Max.)
Signal Type :
eDP (4 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs
EDP-30P4L-050A

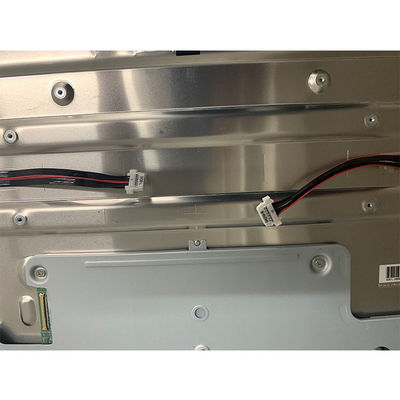

LG Display LM340UW1-SSA3 Backlight Details

Backlight Features :
Type
WLED
Quantity
3 strings × 2CN
Position
Edge light type (Bottom side)
Replacement
-
Shape
3 strings × 2CN
Life Time
30K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
40.6±2.8V
Current Supply
85/90mA (Typ./Max.)
Consumption
20.7/22.1W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
2 pcs
BLE-6PINS-CNAACC
Backlight Driver :
No

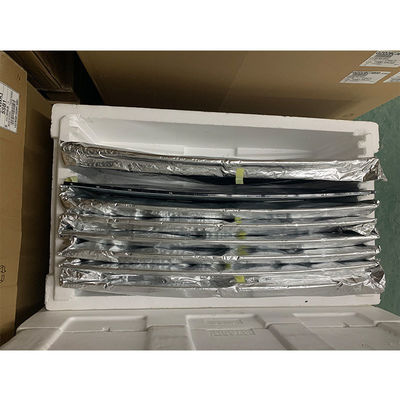

LG Display LM340UW1-SSA3 Packing Details

Package Box : Quantity Weight Box Size
48 pcs / box - 1140×990×1037 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
