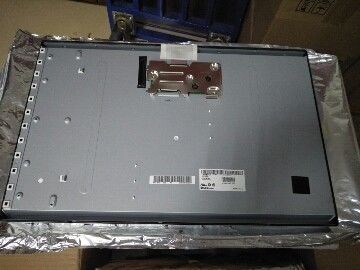

Product Details:
|
| MODEL NUMBER: | LM240WU7-SLB3 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 24.0INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1200 (WUXGA) 94PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 400cd/m2 Square Tft Display,Square Tft Display 94PPI,LM240WU7-SLB3 Square LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | LM240WU7-SLB3 | |
|---|---|---|---|---|
| Diagonal Size | 24.0" | Application | ||

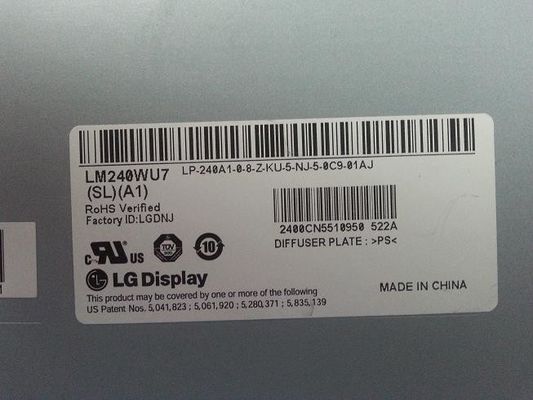

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM240WU7 (SL)(B3) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1200 [WUXGA] | Dot Pitch | 0.090×0.270 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.270×0.270 mm (H×V) [94PPI] | |
| Mechanical Size : | Display Area | 518.4×324 mm (H×V) | Bezel Area | 522.4×328.0 mm (H×V) |
| Outline Dim. | 546.4×352 mm (H×V) | Outline Depth | 35.7 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | Normal bezel | |
| Other Features : | Weight | 2.80Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | e-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 7 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | U shape | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6 pcs | Position | Direct light type | |
| Lamp Electrical : | Voltage Input | 1750±200V | Current Input | 3.0/6.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/55/80KHz (Min./Typ./Max.) | Kick-off Voltage | 2500/2900V (Max.)(Ta=+25/0℃) | |||
| Consumption | 63/69.3W (Typ./Max.) | |||||
| Interface Features : | Type | Position | - | Lamp Driver | No | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 637/750/863mA (Min./Typ./Max.) | ||
| Consumption | 6.72/7.73W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30B-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-220C | |

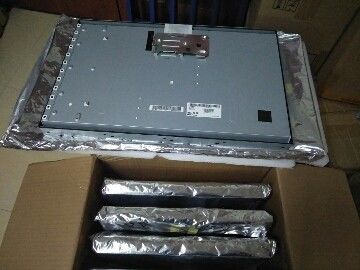

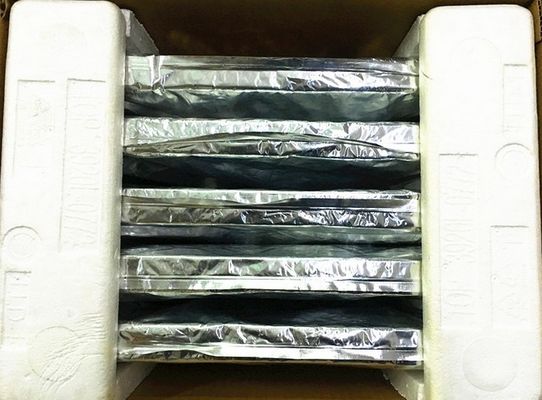

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 5 pcs / box | - | 436×346×628 mm |
