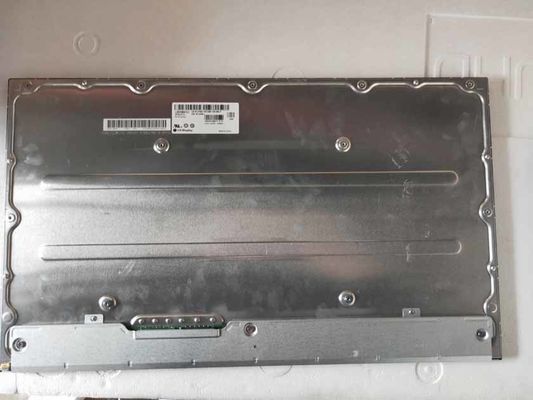

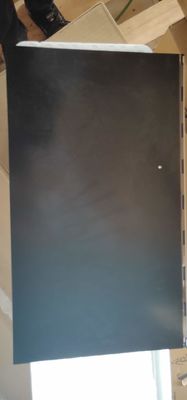

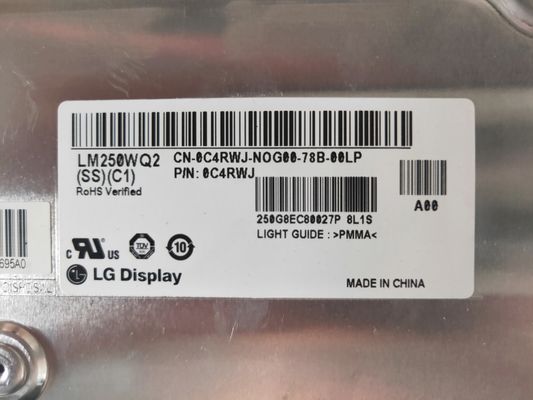

LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY
LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM250WQ2-SSC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM250WQ2-SSC1 BRAND: LG DISPLAY
SIZE: 25.0 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440, Quad-HD, 117PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

VGA Touch Lcd Video Display

,

WVGA Industrial TFT Display

,

LM250WQ2-SSC1 Square Tft Display

LG Display LM250WQ2-SSC1 Application Details

Basic Detail :
Manufacturer

LM250WQ2-SSC1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM250WQ2 (SS)(C1)
Panel Size
25.0 inch
Designed For





  •
  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM250WQ2-SSC1 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
108%
sRGB
100% coverage
Adobe RGB
100% coverage
DCI-P3
96% coverage
Rec.2020
81% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM250WQ2-SSC1 Mechanical Details

Pixel Features :
Number of Pixel
2560(RGB)×1440, Quad-HD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0725×0.2160 mm
Pixel Pitch(W×H)
0.2160×0.2160 mm [117PPI]
Physical Size :
Active Viewing
552.96(W)×311.04(H) mm
Overall Dim.
565(W)×330.7(H) mm
Bezel Opening
-
Overall Depth
11.5/15.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
3-side borderless
Fixation :
Rear mounting
Other Detail :
Mass
2.39Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)



LG Display LM250WQ2-SSC1 Interface Detail

Signal Electrical :
Input Current
0.53/0.66A (Typ./Max.)
Input Voltage
10.0V (Typ.)
Consumption
5.25/6.56W (Typ./Max.)
Signal Interface
LVDS (4 ch, 10-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-RE51S-HF
0.5 mm
51 pins
1 pcs

JAE
FI-RE41S-HF
0.5 mm
41 pins
1 pcs




LG Display LM250WQ2-SSC1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
52.4±3.6V
Input Current
105/110mA (Typ./Max.)
Consumption
22.0/23.5W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
10035WS-H06D
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No





LG Display LM250WQ2-SSC1 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box - 710×365×448 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LM250WQ2-SSC1 LG Display 25.0" 2560(RGB)×1440 300 cd/m² INDUSTRIAL LCD DISPLAY 0
