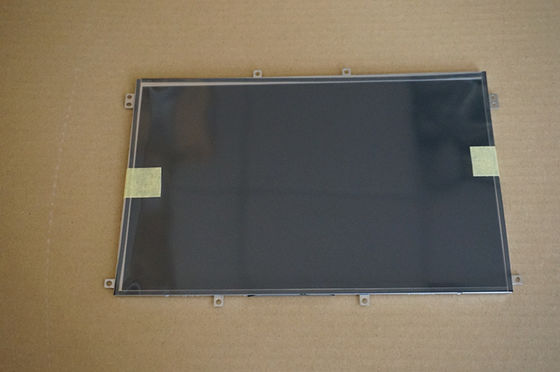

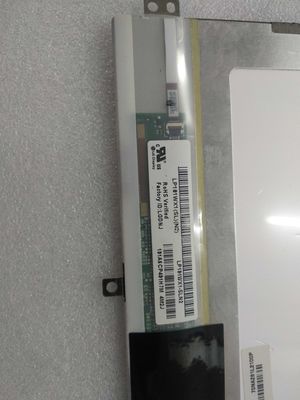

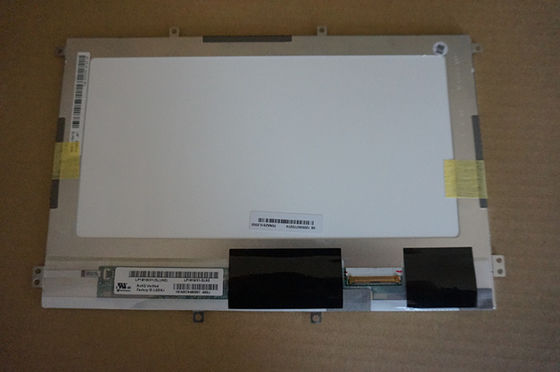

Product Details:
|
| MODEL NUMBER: | LD101WX3-SMP1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×1280 (WXGA) 149PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 800×1280 WLED LCD Panel,149PPI WLED LCD Panel,LD101WX3-SMP1 TFT LCD Panel |
||
| Basic Information : | Brand | Model | LD101WX3-SMP1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.1" | Alias | LD101WX3 (SM)(P1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 800(RGB)×1280, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] | |
| Mechanical Size : | Active Area(mm) | 135.6(H) × 216.96(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 143.24(H) × 228.98(V) | Depth(mm) | 2.3/4.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 135g (Max.) | Treatment | Hard coating |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(13 points) |
| Signal Electrical : | Voltage Supply | 1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | FH43BW-51S-0.2SHW | 1 pcs | 51 pins | 0.2 mm | ||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S4P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 20.09V (Typ.) | Current Supply | 21.5mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 60 pcs / box | - | 478×365×328 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
