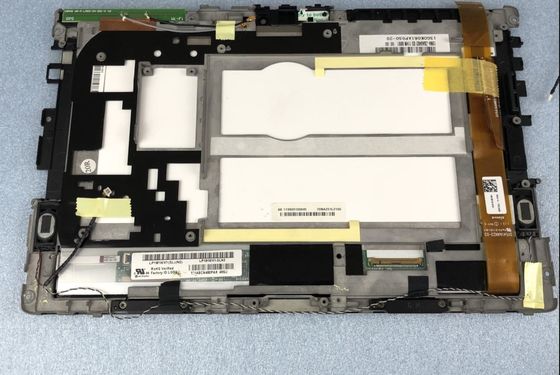

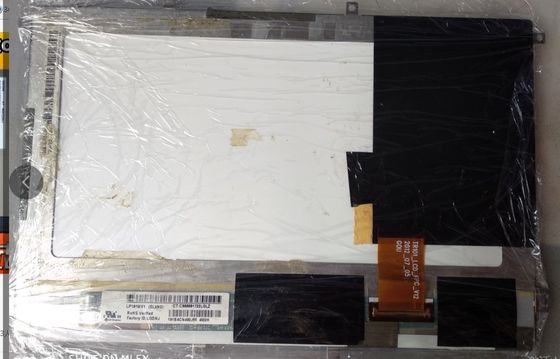

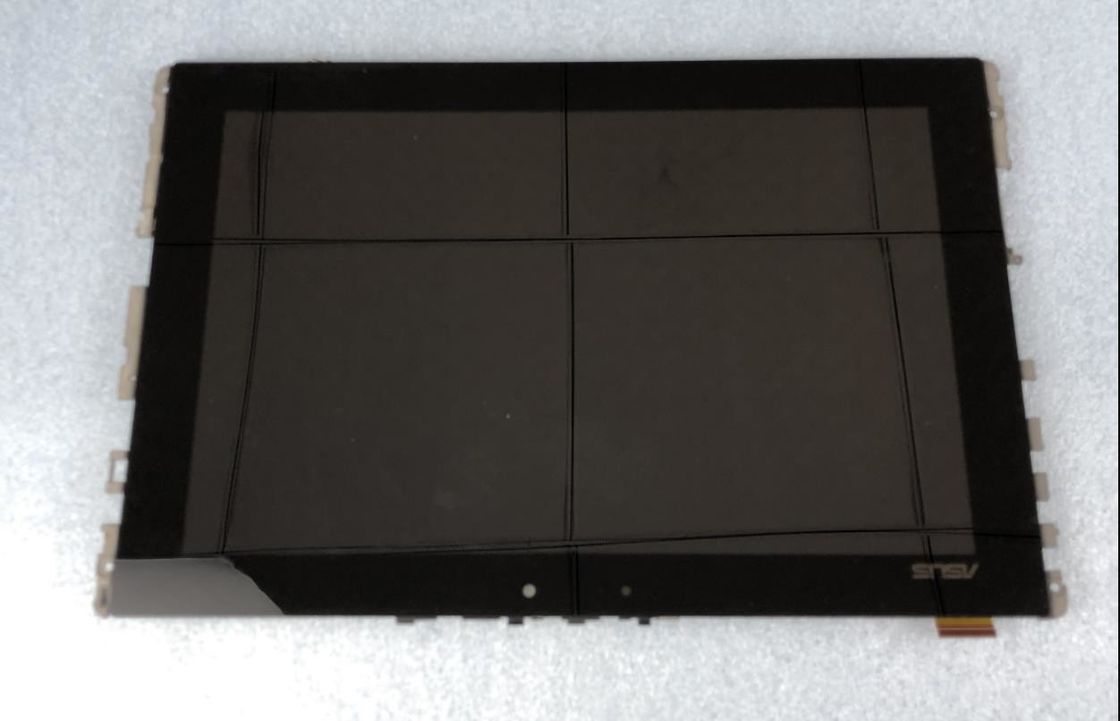

Product Details:
|
| MODEL NUMBER: | LP101WX1-SLN2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800, WXGA, 149PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 350cd/m2 LCD Display Panels,149PPI LCD Display Panels,LP101WX1-SLN2 Industrial Lcd Panel |
||
| Basic Information : | Brand | Model 1 Compatible | Type | Model Alias |
|---|---|---|---|---|
| LP101WX1-SLN2 | a-Si TFT-LCD , LCM | LP101WX1 (SL)(N2), LGD0324 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 10.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 216.96×135.6 mm | 221.6×140.3 mm | 241.86×161.6 mm | 3.35/5.2 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (10 pcs) on left, right, up, down slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 160g (Max.) | Glare (Haze 0%), Reflection 1.5% (Typ.) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 500:1 (Min.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Min.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td); 24 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 303/348mA (Typ./Max.) | 3.3V (Typ.) | 1.0/1.15W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS050-L40B-C10 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 170/181mA (Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.04/2.18W (Typ./Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 30 pcs / box | - | 478×365×244 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
