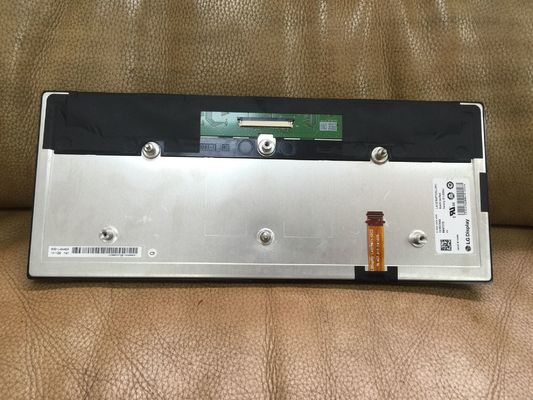

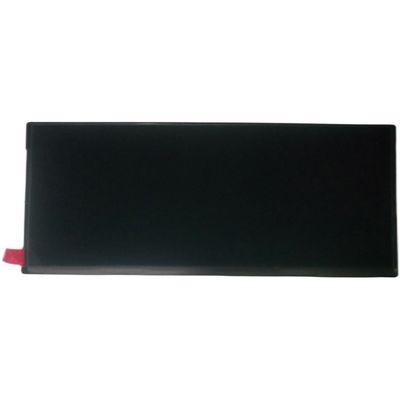

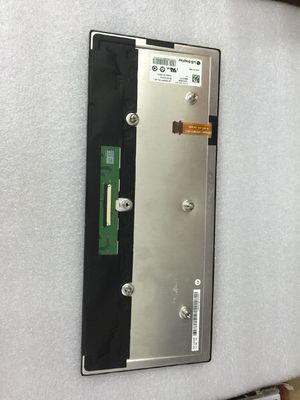

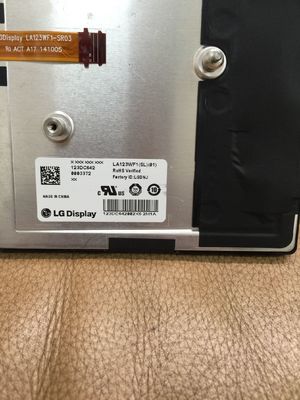

Product Details:
|
| MODEL NUMBER: | LA123WF1-SL01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 12.3INCH | BRIGHTNESS: | 720CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×720 167PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 720cd/m2 TFT LCD Panel,167PPI TFT LCD Panel,LA123WF1-SL01 Industrial TFT Display |
||
| Basic Information : | Brand | Model | LA123WF1-SL01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.3" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -40 ~~ 85 °C |
| RoHS | Vibration | 3.0G (29.4 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×720 | Dot Pitch(mm) | 0.0507×0.1521 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1521×0.1521 (H×V) [167PPI] | |
| Mechanical Size : | Active Area(mm) | 292.032(H) × 109.512(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 310(H) × 128(V) | Depth(mm) | 8.2/20.6 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting Pole | |||
| Other Spec : | Weight | 395/405g (Typ./Max.) | Treatment | Hard coating |
| Basic Information : | Luminance(cd/m²) | 720 (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 86% | sRGB | 99% coverage |
| Adobe RGB | 83% coverage | DCI-P3 | 89% coverage | |
| Rec.2020 | 65% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Signal Electrical : | Voltage Supply | 3.3/13.0V (Typ.)(VCC/VDD) | Current Supply | 220/170mA (Typ.)(ICC/IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | |||||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 11S4P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 33V (Typ.) | Current Supply | 90/95mA (Typ./Max.) | ||
| Consumption | 11.88/12.54W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 20 pins | 0.5 mm | ||||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 12 pcs / box | - | 478×365×244 mm (L×W×H) |
