Product Details:
|
| MODEL NUMBER: | LC260EXN-SDA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 26.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 60PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 1366x768 TFT LCD Panel,60PPI TFT LCD Panel,LC260EXN-SDA1 |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LC260EXN-SDA1 | a-Si TFT-LCD , LCM | LC260EXN (SD)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 26.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.1405×0.4215 mm | 0.4215×0.4215 mm [60PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 575.769×323.712 mm | 580.2×328.2 mm | 609.8×357.8 mm | 10.0/18.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.58/2.70Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9972K | 16.7M (6-bit + Hi-FRC) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 93% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.30 (Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 225/293mA (Typ./Max.) | 12.0V (Typ.) | 2.7/3.51W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | KDF71G-30S-1H | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-015C | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM14B-SRSS-TB | 1 pcs | 1.0 mm | 14 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.10/1.17A (Typ./Max.) | 24.0±1.2V | 26.5/28.1W (Typ./Max.) | ||||

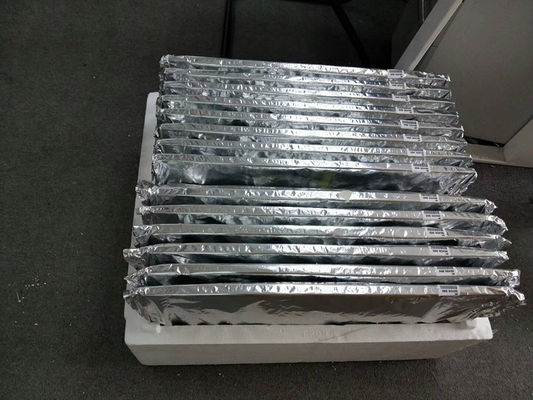

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 9 pcs / box | - | 710×365×447 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
