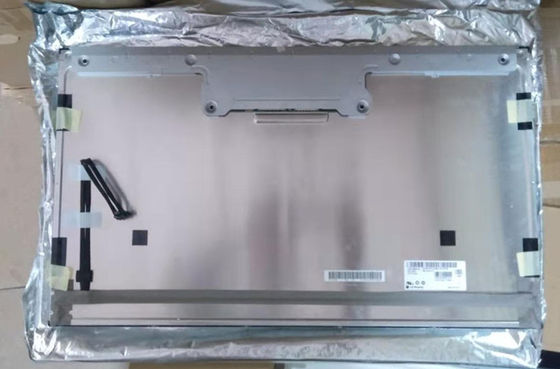

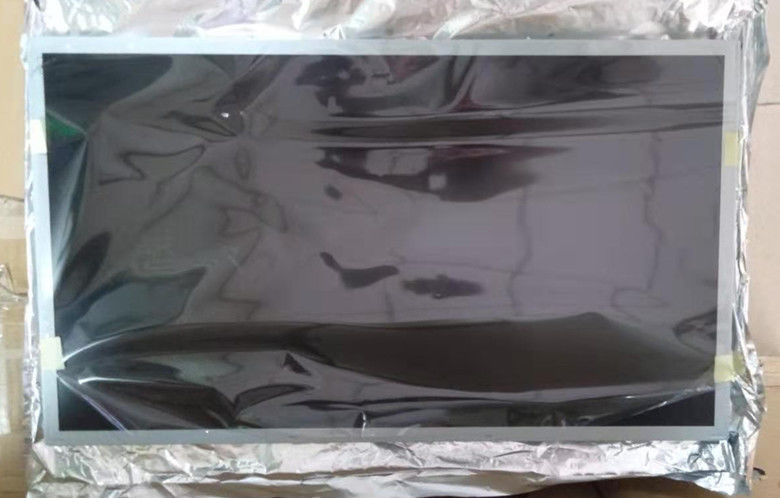

27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1

27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1
27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1 27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1 27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1 27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1

Large Image :  27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM270WQ1-SLC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS

27.0" 2560×1440 108PPI Industrial TFT Display 350cd/m2 LM270WQ1-SLC1

Description
MODEL NUMBER: LM270WQ1-SLC1 BRAND: LG DISPLAY
SIZE: 27.0INCH BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440 [Quad-HD] 108PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

108PPI Industrial TFT Display

,

2560×1440 Industrial TFT Display

,

LM270WQ1-SLC1 RGB Tft Display

LG Display LM270WQ1-SLC1 Application Details

Basic Info :
Panel Brand

LM270WQ1-SLC1Panel Model
Diagonal Size
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LM270WQ1 (SL)(C1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LM270WQ1-SLC1 Mechanical Details

Pixel Features :
Pixel Format
2560(RGB)×1440, Quad-HD
Dot Pitch
0.0777×0.2331 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2331×0.2331 mm (H×V) [108PPI]
Mechanical Size :
Display Area
596.736×335.664 mm (H×V)
Bezel Area
602.0×340.4 mm (H×V)
Outline Dim.
630×368.2 mm (H×V)
Outline Depth
8.7/15.4 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Normal bezel
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
2.72/2.86Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM270WQ1-SLC1 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AH-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
12 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
82%
sRGB
100% coverage
Adobe RGB
80% coverage
DCI-P3
84% coverage
Rec.2020
61% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WQ1-SLC1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
17S4P
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type (Bottom side)
Lamp Electrical :
Voltage Input
53.6±3.4V
Current Input
120/125mA (Typ./Max.)
Consumption
25.7/27.3W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC



LG Display LM270WQ1-SLC1 Interface Detail

Signal Systerm :
LVDS (4 ch, 10-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
12.0V (Typ.)
Current Input
1.05/1.37A (Typ./Max.)
Consumption
9.24/12.0W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
0.5 mm
51 pins
1 pcs

UJU
0.5 mm
41 pins
1 pcs

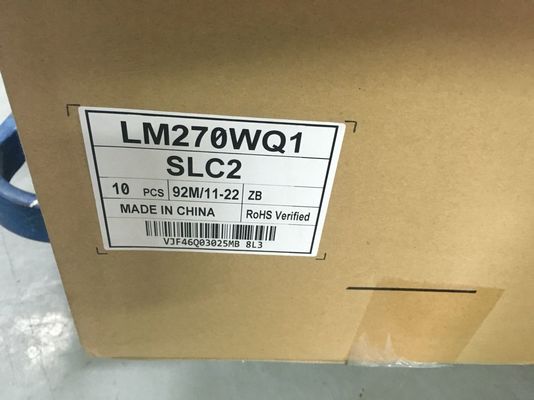

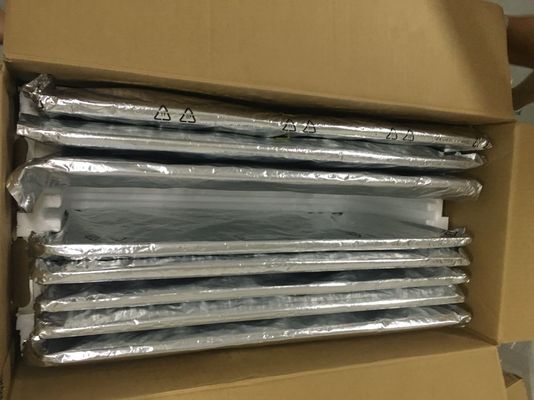

LG Display LM270WQ1-SLC1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 355×700×430 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
