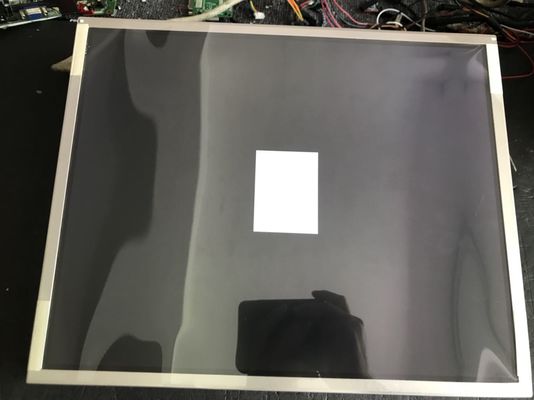

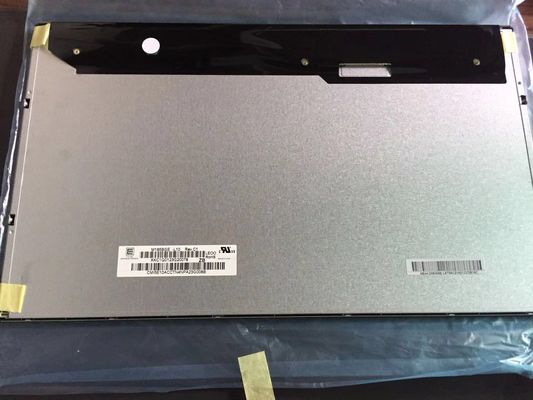

LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM215WF3-SSC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM215WF3-SSC1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM215WF3-SSC1 BRAND: LG DISPLAY
SIZE: 21.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 102PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

VGA Touch Lcd Video Display

,

WVGA Industrial TFT Display

,

LM215WF3-SSC1 Square Tft Display

LG Display LM215WF3-SSC1 Application Details

Basic Info :
Panel Brand

LM215WF3-SSC1Panel Model
Diagonal Size
21.5"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LM215WF3 (SS)(C1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LM215WF3-SSC1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.08265×0.24795 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.24795×0.24795 mm (H×V) [102PPI]
Mechanical Size :
Display Area
476.064×267.786 mm (H×V)
Bezel Area
-
Outline Dim.
494.1×291.4 mm (H×V)
Outline Depth
9.0/13.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
3-side borderless
Holes & Brackets :
Rear mounting holes (7-M2.5, 3-M3, 4-M2.6)
Other Features :
Weight
1.85/1.95Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM215WF3-SSC1 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM215WF3-SSC1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
15S3P
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
3 strings
Position
Edge light type (Bottom side)
Lamp Electrical :
Voltage Input
45±3V
Current Input
85/90mA (Typ./Max.)
Consumption
11.5/12.2W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAANC



LG Display LM215WF3-SSC1 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
750/940mA (Typ./Max.)
Consumption
3.75/4.7W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
IS100-L30O-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160B

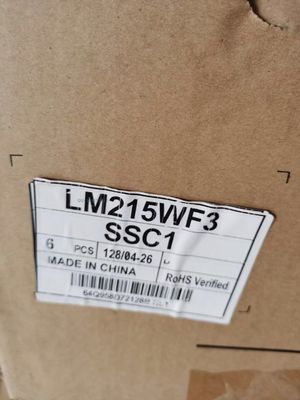

LG Display LM215WF3-SSC1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
12 pcs / box - 365×315×570 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
