LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

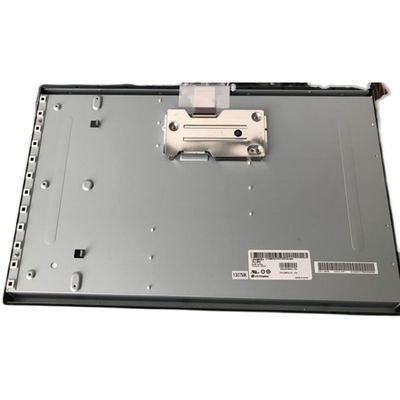

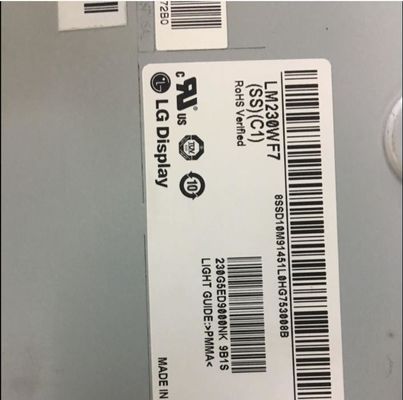

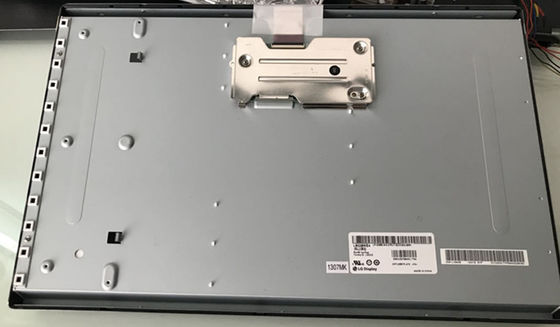

Large Image :  LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM230WF7-SSC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM230WF7-SSC1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM230WF7-SSC1 BRAND: LG DISPLAY
SIZE: 23.0INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 (FHD) 95PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

VGA Touch Lcd Video Display

,

WVGA Industrial TFT Display

,

LM230WF7-SSC1 Square Tft Display

LG Display LM230WF7-SSC1 Application Details

Basic Detail :
Manufacturer

LM230WF7-SSC1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM230WF7 (SS)(C1)
Panel Size
23.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM230WF7-SSC1 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
75%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
77% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM230WF7-SSC1 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0884×0.2652 mm
Pixel Pitch(W×H)
0.2652×0.2652 mm [95PPI]
Physical Size :
Active Viewing
509.184(W)×286.416(H) mm
Overall Dim.
517.2(W)×302.8(H) mm
Bezel Opening
-
Overall Depth
8.55/12.7 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
3-side borderless
Touchscreen :
TP Controller
With touch controller
TP Interface
USB
Touch Points
10 points
TP Technology
In-Cell Touch
Fixation :
Rear mounting holes (13-M3)
Other Detail :
Mass
1.82/1.91Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)





LG Display LM230WF7-SSC1 Interface Detail

Signal Electrical :
Input Current
650/775mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
3.1/3.88W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
IS100-L30B-C23
1.0 mm
30 pins
1 pcs




LG Display LM230WF7-SSC1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
14S4P
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
40.9±2.8V
Input Current
65/70mA (Typ./Max.)
Consumption
10.6/11.4W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
10035WR-H06D
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



LG Display LM230WF7-SSC1 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box - 625×360×382 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
