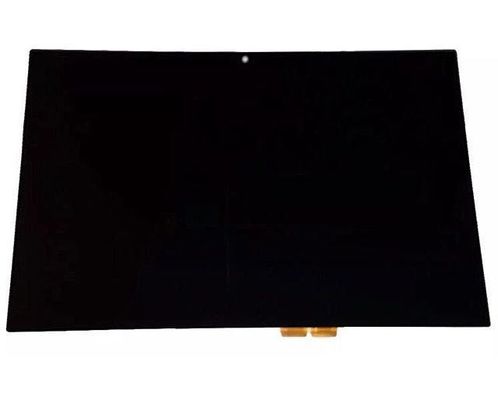

Product Details:
|
| MODEL NUMBER: | LP116WH6-SPA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 11.6 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 135PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Touch Lcd Video Display,WVGA Industrial TFT Display,LP116WH6-SPA2 Square Tft Display |
||
| Basic Information : | Brand | Model | LP116WH6-SPA2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||

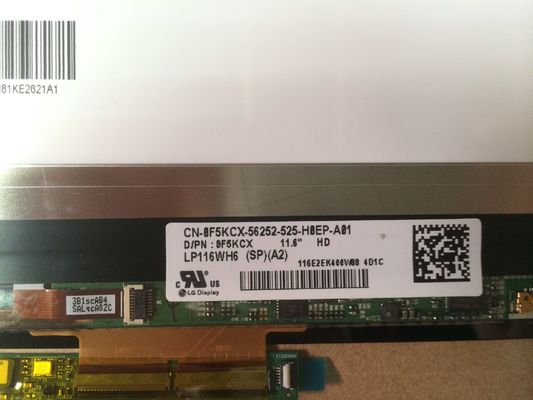

| Screen Size | 11.6" | Alias | LP116WH6 (SP)(A2), LGD0000 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0625×0.1875 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1875×0.1875 (H×V) [135PPI] | |
| Mechanical Size : | Active Area(mm) | 256.125(H) × 144(V) | Bezel Area(mm) | 260.15(H) × 147.5(V) |
| Outline Dim.(mm) | 268.9(H) × 158(V) | Depth(mm) | 3.0/3.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 200g (Max.) | Treatment | Antiglare (Haze 25%), Hard coating |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 20 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 79% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 258/296mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.85/0.98W (Typ./Max.) | |||||
| Signal Type : | eDP (1 Lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | HD2S030HA1 | 1 pcs | 30 pins | 0.5 mm | EDP-30P1L-030A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 6.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | 260/270mA (Typ./Max.) | ||
| Consumption | 3.1/3.2W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - | 488×365×244 mm (L×W×H) |
